(2-23A) - TURBOCHARGER ASSEMBLY 6T-830 EMISSIONS CERTIFIED ENGINE TRACTOR P.I.N. JEE0050601 AND AFTER

Запчасти Case 821B (2-23A) - TURBOCHARGER ASSEMBLY 6T-830 EMISSIONS CERTIFIED ENGINE TRACTOR P.I.N. JEE0050601 AND AFTER (02) - ENGINE

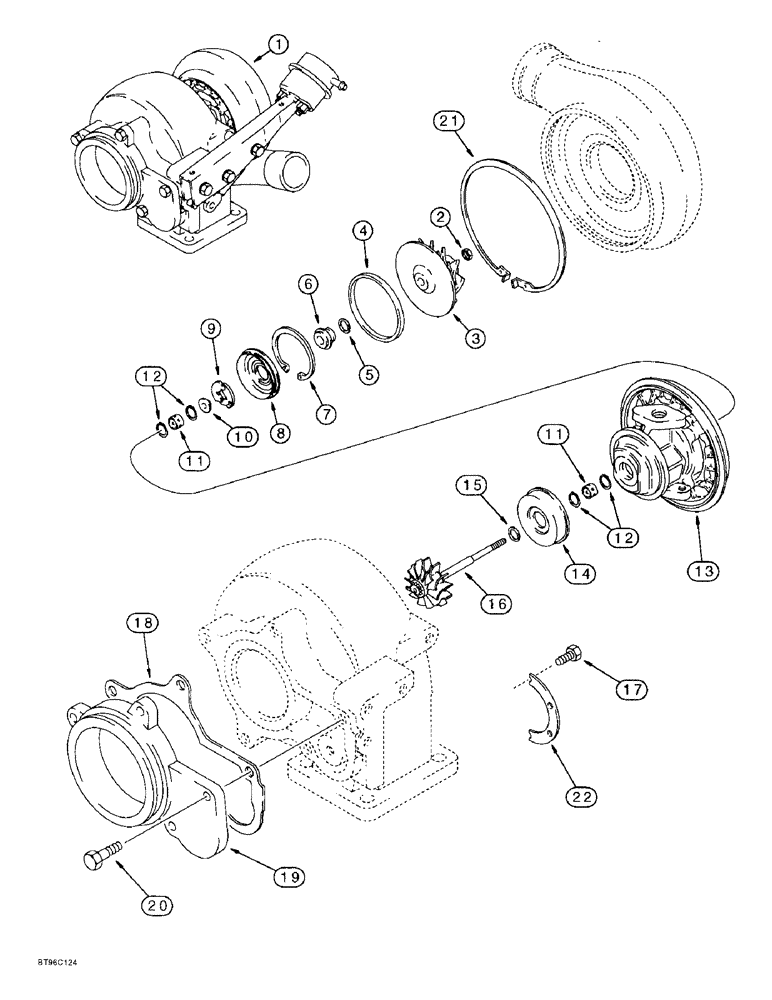

Схема запчастей Case 821B - (2-23A) - TURBOCHARGER ASSEMBLY 6T-830 EMISSIONS CERTIFIED ENGINE TRACTOR P.I.N. JEE0050601 AND AFTER (02) - ENGINE
14
17
13
12
7
4
6
11
22
8
2
5
21
9
1
12
10
16
20
11
3
15
18
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR535635

TURBOCHARGER

ASSEMBLY - engine, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly, includes: Ref. 2 - 17

1шт.

JC535635

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly, includes: Ref. 2 - 17

1шт.

1

J535635

TURBOCHARGER

ASSEMBLY - engine, new, includes: Ref. 2 - 17

1шт.

J535324

CARTRIDGE

CENTER HOUSING ASSEMBLY - turbocharger, includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

Part of Overhaul Kit P/N J75169

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - O-ring

1шт.

Part of Overhaul Kit P/N J75169

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of Overhaul Kit P/N J75169

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Overhaul Kit P/N J75169

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of Overhaul Kit P/N J75169

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of Overhaul Kit P/N J75169

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of Overhaul Kit P/N J75169

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of Overhaul Kit P/N J75169

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of Overhaul Kit P/N J75169

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - turbocharger

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - hex, set

6шт.

Part of Overhaul Kit P/N J75169

1шт.

18

J535243

GASKET,0.25mm Thk

- adapter

1шт.

19

J528010

ADAPTER

- connection, replaces J533030 adapter

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

21

J533163

SNAP RING

RING - retaining

1шт.

22

J534309

PLATE

- clamping

2шт.

J575169

REPAIR KIT

KIT - overhaul, turbocharger, includes: Ref. 2, 4, 5, 7, 8, 9, 11, 12, 15 and 17

1шт.
