Запчасти Case 821B (2-22) - TURBOCHARGER, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE

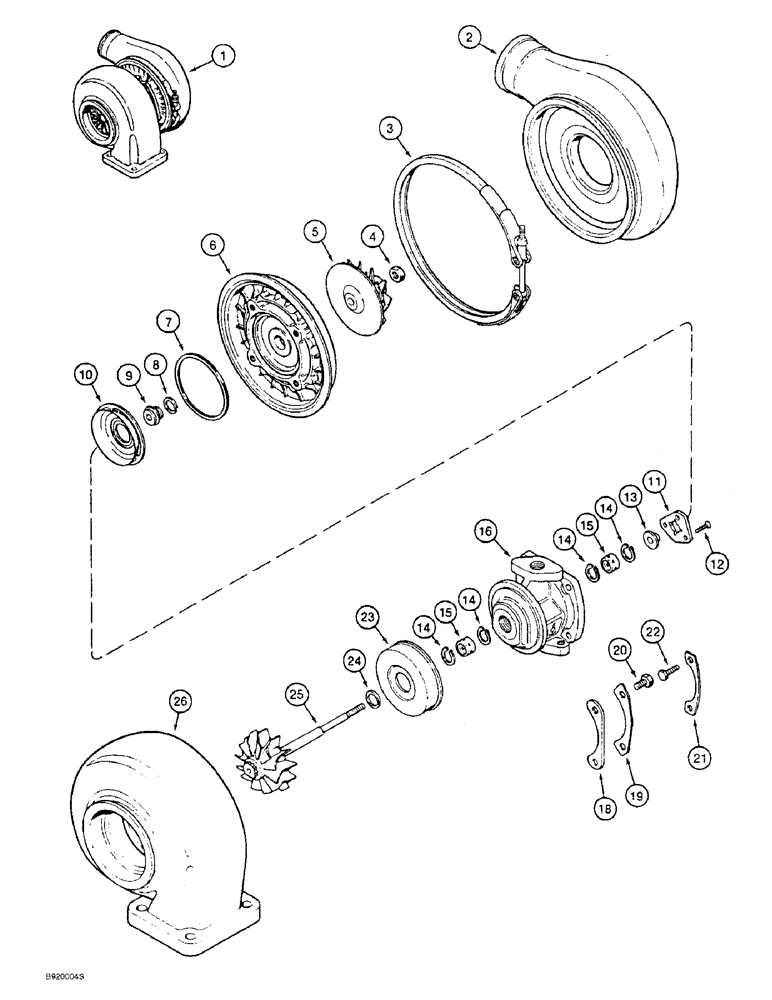

Схема запчастей Case 821B - (2-22) - TURBOCHARGER, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE
19
24
8
25
5
15
21
7
14
11
15
4
14
3
26
6
18
10
20
22
14
12
16
1
23
13
2
9
14

Артикул

Название

Примечание

Количество

1

J802303

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, replaces J919199 turbocharges assembly, includes: Ref. 2 - 28

1шт.

1

JR802303

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of Overhaul Kit P/N J545652

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of Overhaul Kit P/N J545652

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - split ring, oil slinger

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Overhaul Kit P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of Overhaul Kit P/N J545652

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

4шт.

Part of Overhaul Kit P/N J545652

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of Overhaul Kit P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - clamp, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of Overhaul Kit P/N J545652

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining

4шт.

SCREW - hex, set

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex, lock

4шт.

Part of Overhaul Kit P/N J545652

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of Overhaul Kit P/N J545652

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, not shown

8шт.

Part of Overhaul Kit P/N J545652

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - sealing, not shown

1шт.

Part of Overhaul Kit P/N J545652

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, includes Ref. 4, 7, 8, 11, 12, 14, 15, 19, 20,22, 24, 27 and 28, replaces J904772 kit

1шт.

Выбрано товаров: 42
