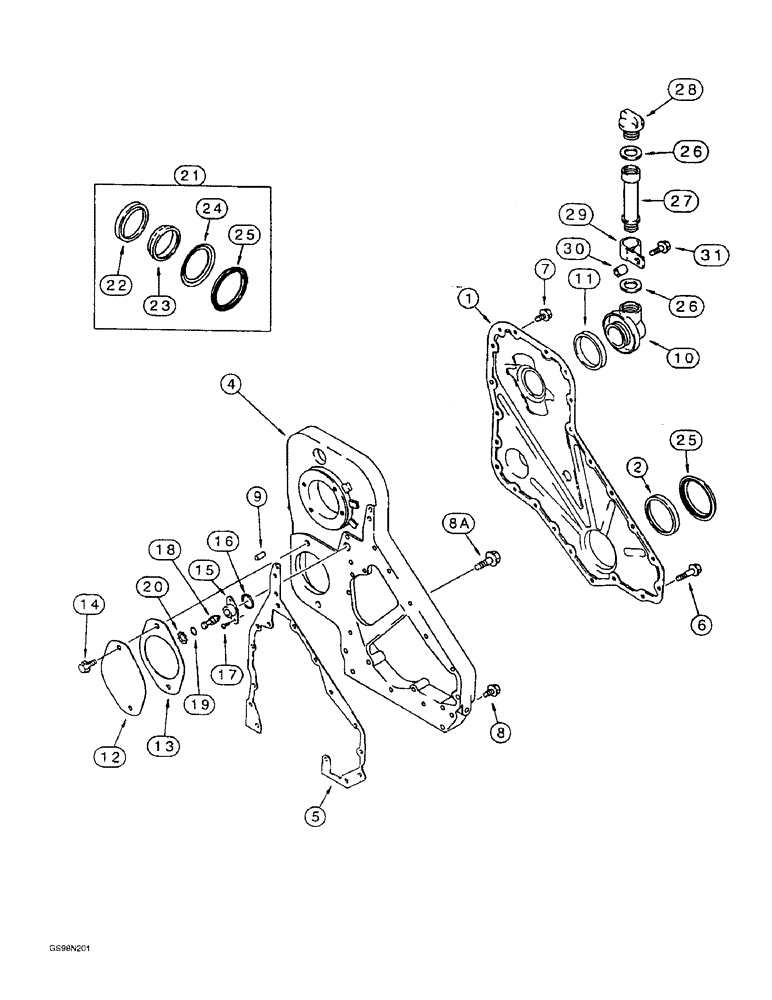

Запчасти Case 821B (2-19A) - FRONT GEAR COVER, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 AND AFTER (02) - ENGINE

1

J925230

COVER ASSY

COVER - gear, front, low PTO

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 21, A77790 kit below

1шт.

3

J823494

SEALANT

- Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, apply between front gear cover and timing gear housing, not shown

1шт.

4

J926721

MOTOR HOUSING

HOUSING - gear, low PTO

1шт.

5

J929253

GASKET

- housing, gear

1шт.

6

J926863

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 50 mm, class 10.9, front gear cover to timing gear housing to engine block

6шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, front gear cover to timing gear housing

17шт.

8

J926846

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 20 mm, class 10.9, timing gear housing to engine block

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Timing gear housing to engine block Hex Flg, M12 x 50, 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

10

J921644

ADAPTER

CONNECTOR - engine oil fill

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

12

J914868

COVER

PLATE - access cover, flat

1шт.

13

J931608

GASKET

- access cover plate, replaces J919601 gasket

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

15

J919683

HOUSING

- timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

19

J913994

O-RING

- sealing, timing pin

1шт.

20

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

21

A77790

SEAL KIT

KIT - oil seal, crankshaft front, includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

26

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

2шт.

27

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

1шт.

28

J901895

CAP

- oil filler

1шт.

29

A77695

MOUNTING CLIP

CLAMP - P-type

1шт.

30

A77697

SPACER

- tubular

1шт.

31

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

1шт.
