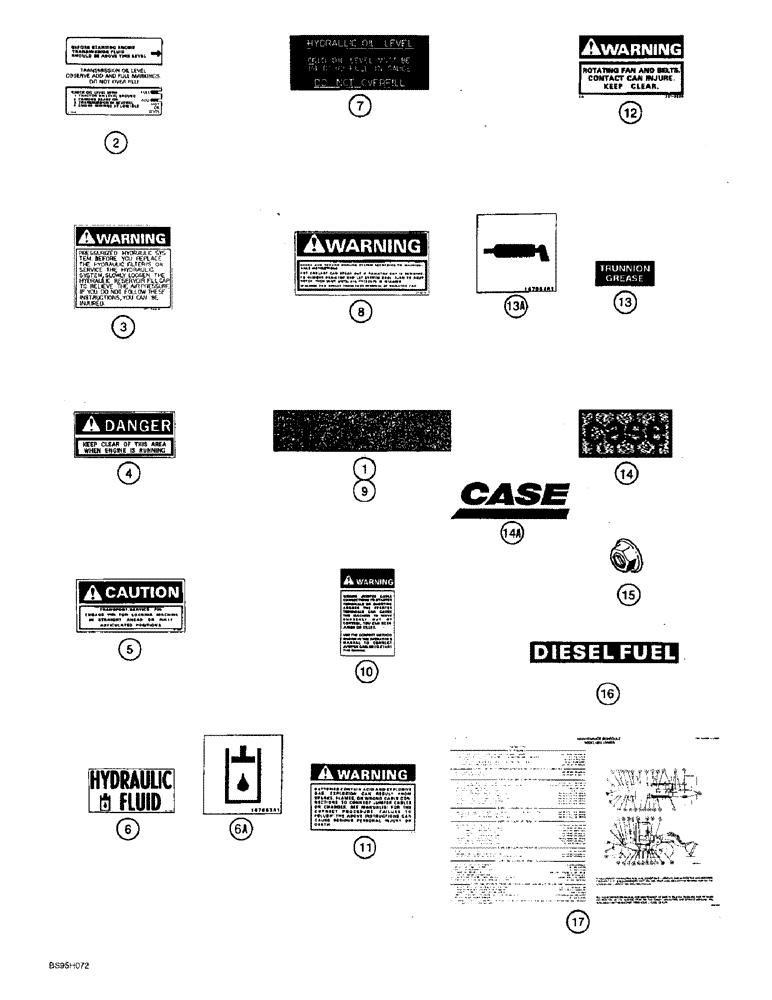

Запчасти Case 821B (9-102) - DECALS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
S243101
WEAR PAD
PAD - anti-skid, cut from S84068 bulk trim
1шт.
2
L125910
DECAL
- transmission oil level
1шт.
Part of Decal Kit P/N 194308A1
1шт.
3
321-6666
DECAL
- Warning, pressurized hydraulic system
2шт.
Part of Decal Kit P/N 194308A1
1шт.
4
321-3205
DECAL
- Danger, keep clear of this area when engine is running, rear chassis
2шт.
Part of Decal Kit P/N 194308A1
1шт.
5
321-3927
DECAL
- Caution, transport/service pin
1шт.
Part of Decal Kit P/N 194308A1
1шт.
6
321-6376
DECAL
- hydraulic fluid, models with tan cabs or canopies
1шт.
Part of Decal Kit P/N 194308A1
1шт.
6a
187863A1
DECAL
- hydraulic fluid, models with gray or special painted cabs or canopies
1шт.
Part of Decal Kit P/N 194308A1
1шт.
7
L117520
DECAL
- hydraulic oil level
1шт.
Part of Decal Kit P/N 194308A1
1шт.
8
321-6672
DECAL
- warning, check and service cooling system
1шт.
Part of Decal Kit P/N 194308A1
1шт.
9
D55216
PAD,2" x 9"
PAD - anti-skid, if used
24шт.
Part of Decal Kit P/N 194308A1
1шт.
10
321-6872
DECAL
- Warning, wrong jumper cable connections to starter terminals
1шт.
Part of Decal Kit P/N 194308A1
1шт.
11
321-6714
DECAL
- Warning, batteries contain acid and explosive gas
1шт.
Part of Decal Kit P/N 194308A1
1шт.
12
321-3596
DECAL
- Warning, rotating fan and belts
2шт.
Part of Decal Kit P/N 194308A1
1шт.
13
L116271
DECAL
- trunnion grease, models with tan cabs or canopies
1шт.
13a
187864A1
DECAL
- grease lube point, models with gray or special painted cabs or canopies
1шт.
14
321-4739
EMBLEM
- Case, on grille, models with tan cabs or canopies
1шт.
14a
186989A1
EMBLEM
- case, on grille, models with gray or special painted cabs or canopies
1шт.
15
131-431
PUSH-ON NUT,Self, Threading, 1/4"
NUT - push-on type
2шт.
16
321-2601
DECAL
- diesel fuel
1шт.
17
115425A1
DECAL
- maintenance schedule
1шт.
194308A1
DECAL
KIT - decal, includes Refs. 2 - 12 and Ref. on Figs. 9-99A and 9-104
1шт.
Выбрано товаров: 33
