Запчасти Case 821B (2-16) - WATER PUMP SYSTEM, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE

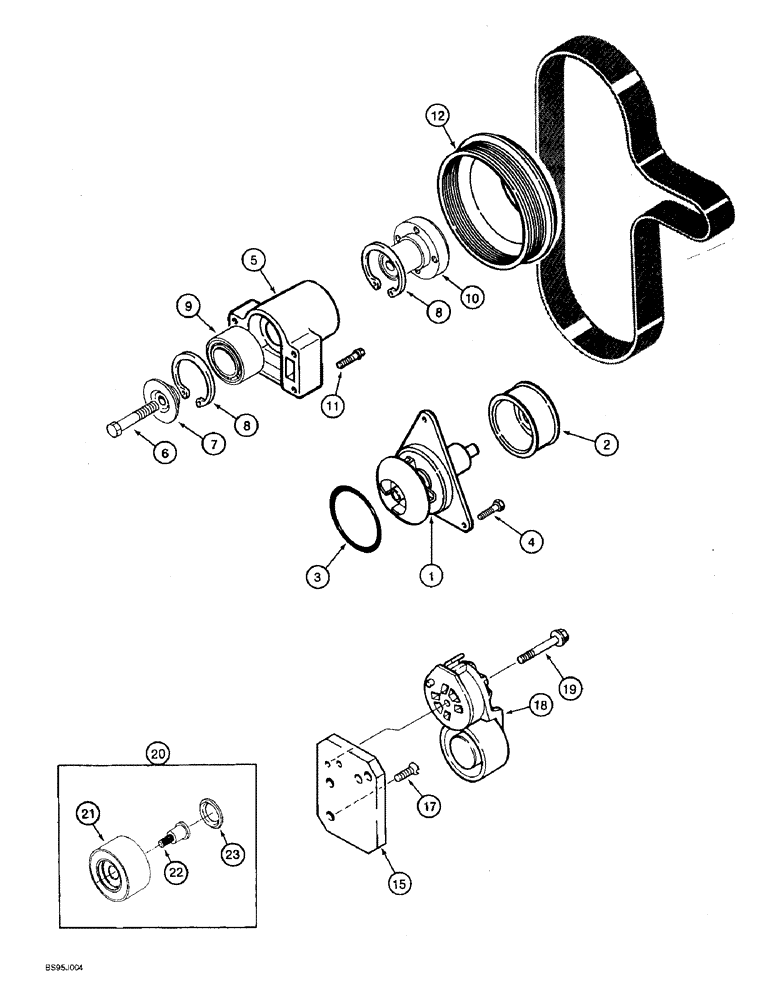

Схема запчастей Case 821B - (2-16) - WATER PUMP SYSTEM, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE
7
10
8
8
11
2
6
4
1
3
5
9
12

Артикул

Название

Примечание

Количество

J802975

PUMP, WATER

KIT - water pump, replaces A77704 kit, includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

821B PRIOR TO P.I.N. JEE0050601, Reman for New P/N J802975

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, Serial Range: pump-block

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J929458

SUPPORT

ASSEMBLY - fan, replaces J910738 support assembly, includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

10

J911924

HUB

- fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

15

J925188

SUPPORT

BRACKET - belt tensioner, replaces J911473 bracket

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

2шт.

18

J934817

BELT TENSIONER

TENSIONER - belt, replaces J918944 tensioner

1шт.

19

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, belt tensioner to mounting bracket

1шт.

20

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J934817 belt tensioner, Ref. 18, includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - bolt

1шт.

Выбрано товаров: 23
