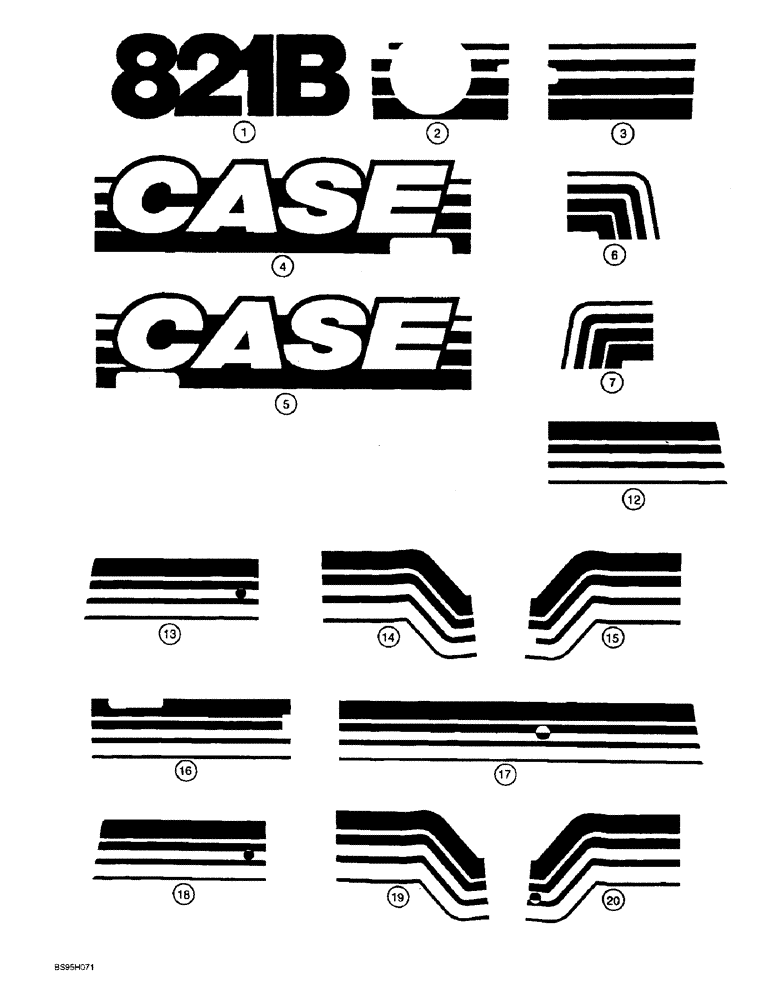

Запчасти Case 821B (9-099A) - DECALS - GRAY (09) - CHASSIS/ATTACHMENTS

1

182888A1

DECAL

- 821B, located on loader arms

2шт.

Part of KIT, P/N 194308A1

1шт.

2

185685A1

DECAL

- stripes, left-hand, hydraulic tank, if used

1шт.

Part of KIT, P/N 194308A1

1шт.

2

183425A1

DECAL

- stripes, left-hand, hydraulic tank, not shown

1шт.

Part of KIT, P/N 194308A1

1шт.

3

183424A1

DECAL

- stripes, right-hand, hydraulic tank

1шт.

Part of KIT, P/N 194308A1

1шт.

4

185683A1

DECAL

- Case, left-hand, hood, if used

1шт.

Part of KIT, P/N 194308A1

1шт.

4

183421A1

DECAL

- Case, left-hand, hood, not shown

1шт.

Part of KIT, P/N 194308A1

1шт.

5

185682A1

DECAL

- Case, right-hand, hood, if used

1шт.

Part of KIT, P/N 194308A1

1шт.

5

183420A1

DECAL

- Case, right-hand, hood, not shown

1шт.

Part of KIT, P/N 194308A1

1шт.

6

185680A1

DECAL

- stripes, left-hand, radiator shroud

1шт.

Part of KIT, P/N 194308A1

1шт.

7

185681A1

DECAL

- stripes, right-hand, radiator shroud, if used

1шт.

Part of KIT, P/N 194308A1

1шт.

7

183422A1

DECAL

- stripes, not shown

1шт.

Part of KIT, P/N 194308A1

1шт.

DECALS USED ON CABS PAINTED GRAY

1шт.

12

183428A1

DECAL

- stripes, right-hand, front of cab

1шт.

13

183432A1

DECAL

- stripes, left-hand, front of cab

1шт.

14

183429A1

DECAL

- stripes, right-hand, quarter panel of cab

1шт.

15

183430A1

DECAL

- stripes, left-hand, quarter panel of cab

1шт.

16

183431A1

DECAL

- stripes, left-hand, door of cab

1шт.

DECALS USED ON CANOPYS PAINTED GRAY

1шт.

17

183433A1

DECAL

- stripes, right-hand, front of canopy

1шт.

18

183432A1

DECAL

- stripes. left-hand, front of canopy

1шт.

19

183429A1

DECAL

- stripes, right-hand, quarter panel of canopy

1шт.

20

183434A1

DECAL

- stripes, right-hand, rear of canopy

1шт.

DECALS USED ON CABS PAINTED OTHER THAN GRAY OR TAN

1шт.

21

184980A1

DECAL

- stripes, right-hand, front of cab, similiar to Ref. 12

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

22

184984A1

DECAL

- stripes, left-hand, front of cab, similiar to Ref. 13

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

23

184981A1

DECAL

- stripes, right-hand quarter panel of cab, similiar to Ref. 14

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

24

184982A1

DECAL

- stripes, left-hand, quarter panel of cab, similiar to Ref. 15

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

25

184983A1

DECAL

- stripes, left-hand, door of cab, similiar to Ref. 16

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

DECALS USED ON CANOPYS PAINTED OTHER THAN GRAY OR TAN

1шт.

26

184986A1

DECAL

- stripes, right-hand, front of canopy, similiar to Ref. 17

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

27

184984A1

DECAL

- stripes, left-hand, front of canopy, similiar to Ref. 18

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

28

184981A1

DECAL

- stripes, right-hand, quarter panel of canopy, similiar to Ref. 19

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

29

184987A1

DECAL

- stripes, left-hand, rear of canopy, similiar to Ref. 20

1шт.

Refs. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

194308A1

DECAL

KIT decal, includes Refs. 1 through 7, and Figures 9-102 and 9-104.

1шт.
