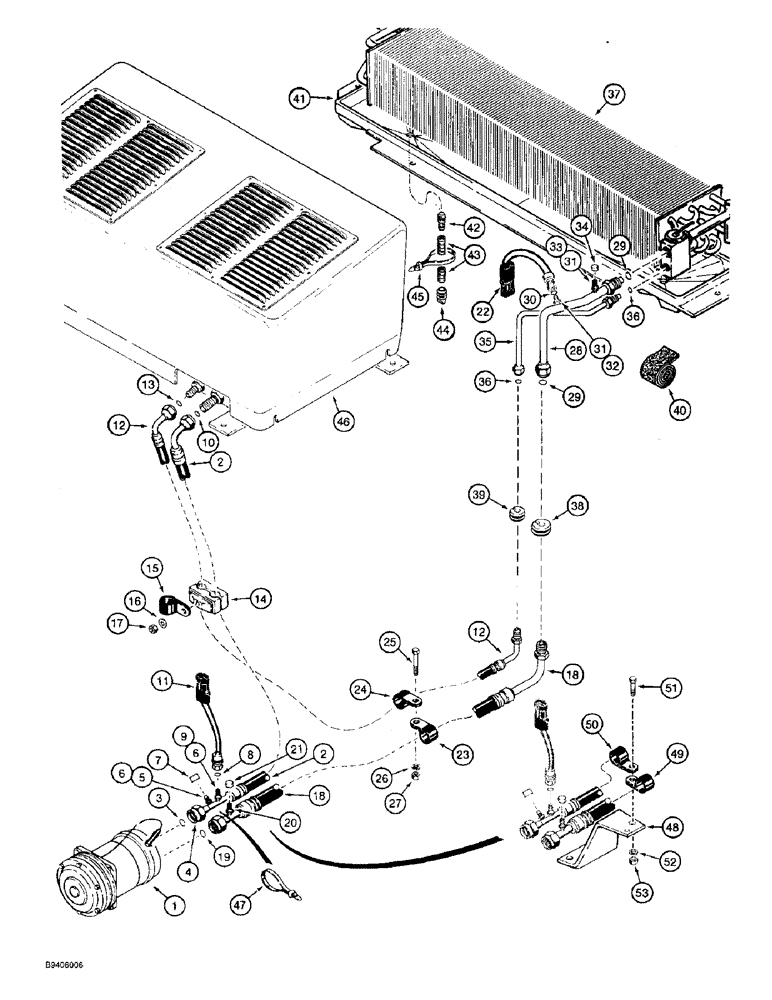

Запчасти Case 821B (9-085A) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND (09) - CHASSIS/ATTACHMENTS

1

1990760C1

COMPRESSOR

ASSEMBLY - air conditioning, component parts not serviced separately, clutch repair kit shown on page 9-91, if used

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

821B, Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

133507A1

HOSE ASSY.

HOSE - 1185 mm (46-11/16 inch) long, supply, compressor to condenser, includes Ref. 3 - 10

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide, at compressor outlet port

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - special, compressor fitting

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING - special, high side charge port

1шт.

6

1250594C1

CORE

VALVE - core, hose

2шт.

7

122554A1

CAP

- sealing

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

9

122081A1

FITTING,M10 x 1.25 x 26.43mm L

- special, pressure switch

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide, at condenser inlet port

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE, 400 psi, Replaces 1999925C1 switch

1шт.

12

1954642C2

HOSE

- 1325 mm (52-5/32 inch) long, return, condenser to evaporator core, includes Ref. 13

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Hose, at condenser

1шт.

14

L115095

CLAMP

- double, includes both halves and metal top plate

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Harness 1/2", Insul, 3/8" Bolt

1шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

18

133508A1

HOSE ASSY.

HOSE - 1230 mm (48-7/16 inch) long, evaporator core to compressor inlet port, includes Ref. 19 - 21

1шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide, at compressor inlet port

1шт.

20

1250594C1

CORE

VALVE - core, hose

1шт.

21

122553A1

CAP

- sealing, hose

1шт.

22

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, RH hose 1", Insul, 3/8" Bolt

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, LH hose 5/8", Insul, 3/8" Bolt

1шт.

25

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

133506A1

TUBE

- cab suction, upper, includes Ref. 29 - 36

1шт.

29

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

2шт.

30

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

31

1250594C1

CORE

VALVE - core, hose

2шт.

32

NSS

NOT SOLD SEPARAT

FITTING - special, pressure switch

1шт.

33

NSS

NOT SOLD SEPARAT

FITTING - special, low side service port

1шт.

34

122553A1

CAP

- sealing

1шт.

35

97141C3

PIPE

TUBE - lower, return, condenser to evaporator core

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

2шт.

37

1990757C2

EVAPORATOR

CORE ASSEMBLY - air conditioning and heater, parts list Fig. 9-78

1шт.

38

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- rubber, 1-1/4 inch groove diameter, upper tube

1шт.

39

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Lower tube 3/8" ID x 1" Groove Dia, Str Cut

1шт.

40

83822C1

TAPE

- 610 mm (24 inch) long, cut from 1954475C1 bulk tape, see below

5шт.

41

1339577C3

PAN

- drip, condensation, see page 9-79 for seals and mounting

1шт.

42

1250522C3

FITTING

FITTING - straight, special, drain, Serial Range: hose-housing

2шт.

43

1977334C1

HOSE

- 610 mm (24 inch) long, cut from 198091C1 bulk hose, see below, drain, from condensation pan

2шт.

44

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

45

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

4шт.

46

97182C6

CAPACITOR

CONDENSER ASSEMBLY - air conditioning, with brown cover, parts list and mounting Fig. 9-89A and page 9-89D

1шт.

46

178301A1

ASSEMBLY

CONDENSER ASSEMBLY - air conditioning, with tan cover, parts list and mounting Fig. 9-89A and page 9-89D, if used

1шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

48

L125956

SUPPORT

BRACKET - clamp mounting, uses existing hardware

1шт.

49

515-22254

CLAMP,1", Insul, 5/16" Bolt

P-type, Suction hose 1", Insul, 5/16" Bolt

1шт.

50

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type, Supply hose 3/4", Insul, 5/16" Bolt

1шт.

51

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

1954475C1

ROLL

TAPE - bulk, 63.5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.
