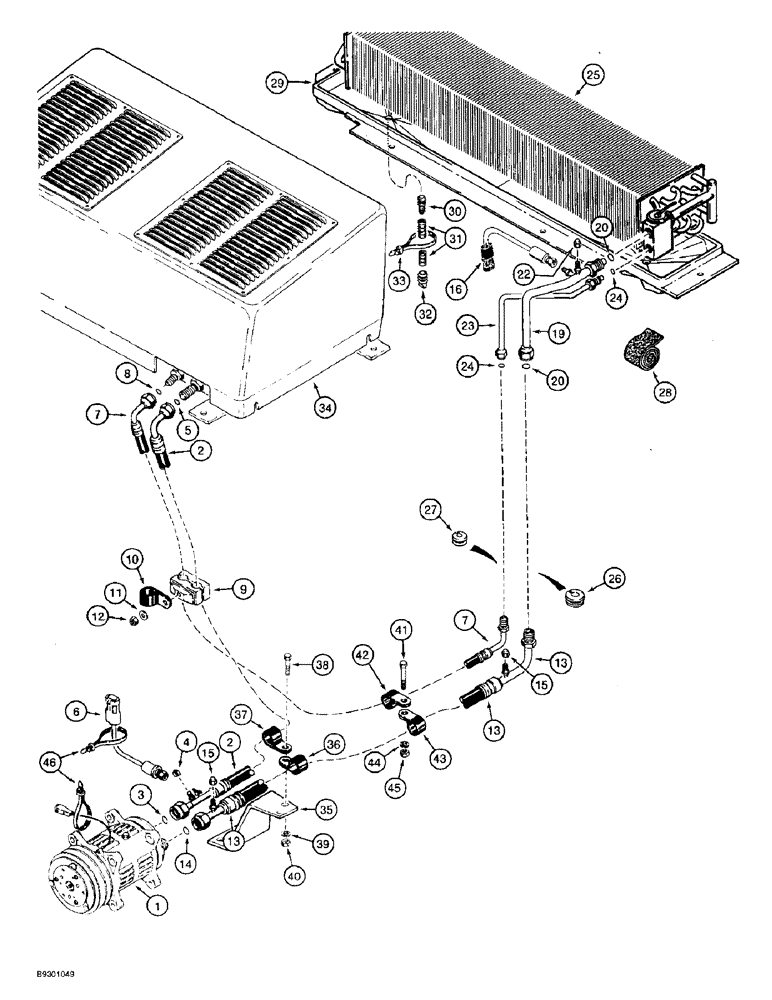

Запчасти Case 821B (9-082) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list Fig. 9-92

1шт.

2

1954629C1

HOSE

- 1185 mm (46-5/8 inch) long, parts list Fig. 9-92, includes Ref. 3 - 5

1шт.

3

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, At compressor outlet port

1шт.

4

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare, only 1 cap used

2шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, At condenser

1шт.

6

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

7

1954642C2

HOSE

- 1325 mm (52-5/32 inch) long, return, condenser to evaporator core, includes Ref. 8

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Hose, at condenser

1шт.

9

L115095

CLAMP

- double

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Harness 1/2", Insul, 3/8" Bolt

1шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

13

1977981C2

HOSE

- 1230 mm (48-7/16 inch) long, evaporator core to compressor inlet port, includes Ref. 14 - 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Hose, at compressor

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

2шт.

16

92153C1

SWITCH

- low pressure

1шт.

19

97140C5

PIPE

TUBE - pressure, evaporator core to compressor inlet hose, includes Ref. 20 - 22

1шт.

20

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

21

1250594C1

CORE

VALVE - core

1шт.

22

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

23

97141C3

PIPE

TUBE - lower, return, condenser to evaporator core

1шт.

24

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Includes Ref. 24

2шт.

25

98369C3

RADIATOR

CORE ASSEMBLY - air conditioning and heater, parts list Fig. 9-78

1шт.

26

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Upper tube 3/8" ID x 1" Groove Dia, Str Cut

1шт.

27

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- rubber, 1-1/4 inch groove diameter, lower tube

1шт.

28

83822C1

TAPE

- 610 mm (24 inch) long, cut from 1954475C1 bulk tape, see below

5шт.

29

1339577C3

PAN

- drip, condensation

1шт.

30

1250522C3

FITTING

FITTING - straight, special, drain, Serial Range: hose-housing

2шт.

31

1977334C1

HOSE

- 610 mm (24 inch) long, cut from 198091C1 bulk hose, see below, drain, from condensation pan

2шт.

1954475C1

ROLL

TAPE - bulk, 63.5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.

32

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

33

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

4шт.

34

REF

INSTRUCTION

CONDENSER ASSEMBLY - air conditioning, parts list and mounting Figs. 9-86 and 9-88

1шт.

35

L125956

SUPPORT

BRACKET - clamp mounting, uses existing hardware

1шт.

36

R11405

CLAMP

- P-type, 1 inch ID, suction hose

1шт.

37

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type, Supply hose 3/4", Insul, 5/16" Bolt

1шт.

38

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

41

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

42

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

43

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Replaces D47782 clamp 1", Insul, 3/8" Bolt

1шт.

44

492-11038

LOCK WASHER,3/8"

1шт.

45

425-106

NUT,3/8"-16, Cl 5

1шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
