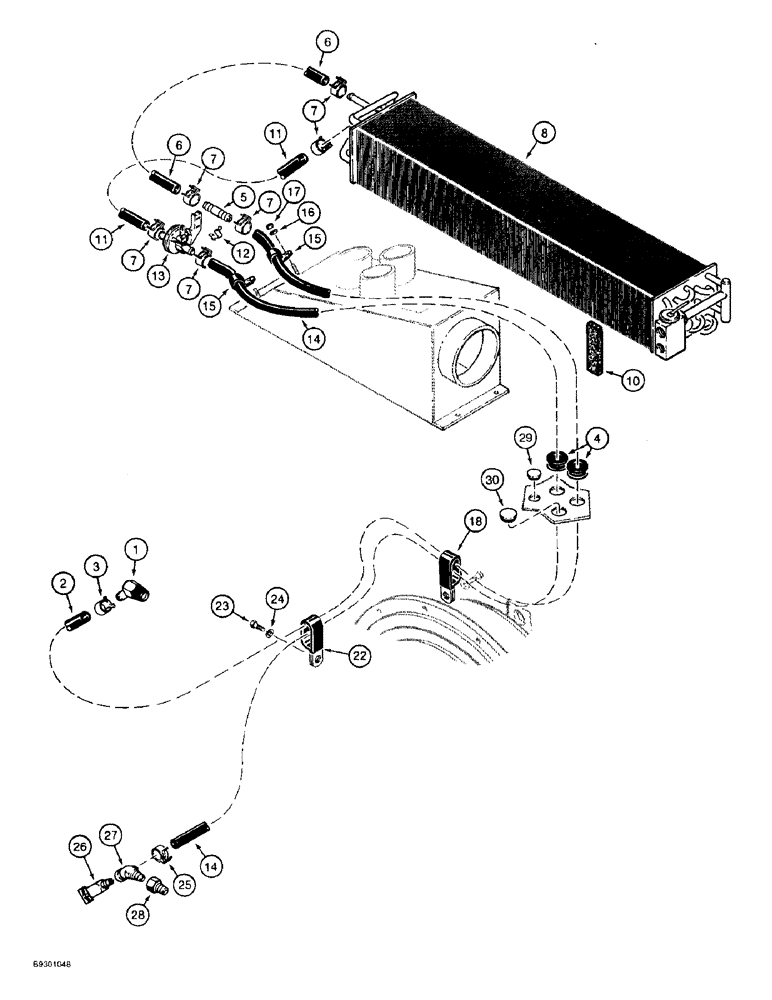

Запчасти Case 821B (9-080) - HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 45 degree, 5/8 stem end x 1/2 inch PT

1шт.

2

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HEATER HOSE , Cut from 97252CX bulk hose, See below, Supply 15.50 mm ID x 3302.00 mm

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

1шт.

4

L116914

GROMMET

- heater hose

2шт.

5

1301342C1

FITTING

ADAPTER - straight, special

1шт.

6

1981958C1

HEATER HOSE,15.50 mm ID x 330.00 mm

HOSE , Heater Supply 15.50 mm ID x 330.00 mm

1шт.

7

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

6шт.

8

REF

INSTRUCTION

CORE ASSEMBLY - combination, air conditioning and heater, see Fig. 9-78 for correct assembly and Fig. list, see Ref. 9 for models with heater only

1шт.

9

1331025C1

CORE

- heater, used on models with heater only, not shown

1шт.

10

1340075C1

SEAL

- 130 mm (5-1/8 inch) long, cut from 1974883CX bulk seal, see below, core ends

4шт.

11

1977501C1

HEATER HOSE,15.50 mm ID x 610.00 mm

HOSE , Return, At Core 15.50 mm ID x 610.00 mm

1шт.

12

1954626C1

SPRING CLIP

CLIP - retaining, heater cable retaining

1шт.

13

1331087C1

HEATER VALVE

VALVE - control

1шт.

14

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

HEATER HOSE , Cut from 97252CX bulk hose, See below, Preformed, Heater return 15.50 mm ID x 2921.00 mm

1шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double, heater hose, uses transmission converter to flywheel housing mounting hardware, shown on Fig. 6-4, Ref. 2 and 3

1шт.

22

L111928

CLAMP

- double, heater hose

1шт.

23

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

24

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

25

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

1шт.

26

301803R1

SHUT-OFF VALVE

VALVE - shutoff

1шт.

27

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street 45º, 3/8"-18 Female x 3/8"-18 Male

1шт.

28

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

29

24539R1

HOLE PLUG BUTTON,1"

BUTTON, HOLE PLUG, , Used on models with heating only 1"

1шт.

30

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - 1-1/4 inch ID, used on models with heating only

1шт.

31

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Not shown Hex, M10 x 20, 8.8, Full Thd

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, Not shown

1шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.

1974883CX

SEAL

- bulk, adhesive-backed, 13 (1/2) x 38 (1-1/2) x 15240 mm (600 inch) long

1шт.
