Запчасти Case 821B (9-076) - HEATING AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

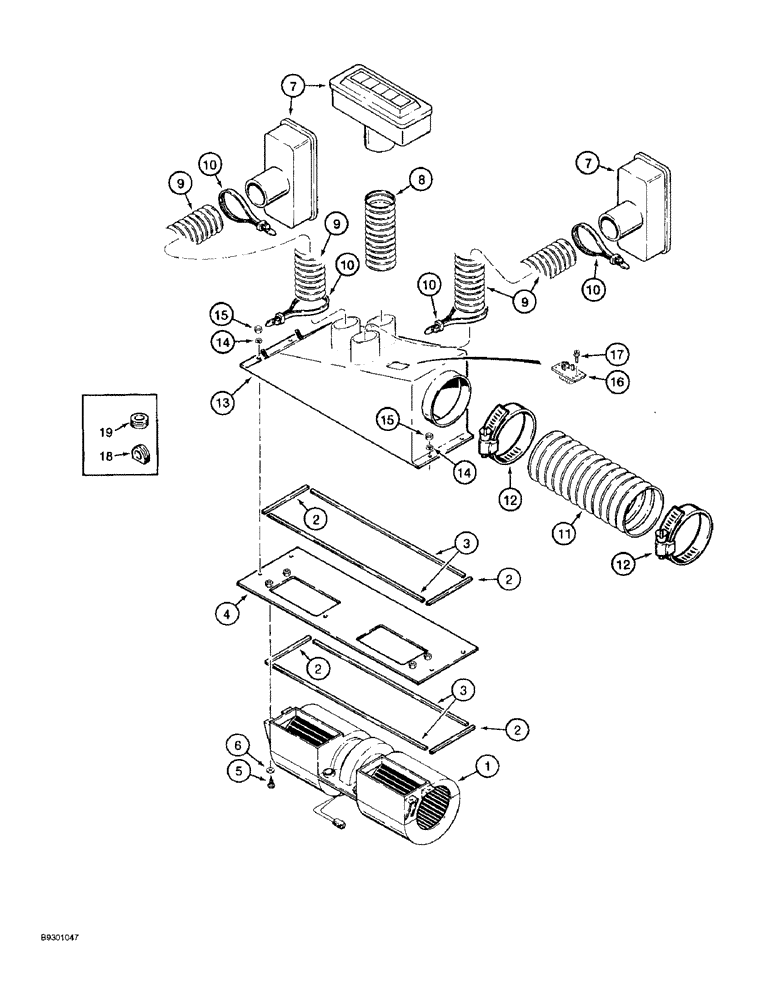

BLOWER ASSEMBLY - cab, parts list Fig. 4-56

1шт.

2

1340071C1

SEAL

SEAL - 200 mm (7-7/8 inch) long, cut from 187874C1 bulk seal, see below

4шт.

3

1340072C1

SEAL

SEAL - 530 mm (20-7/8 inch) long, cut from 187874C1 bulk seal, see below

4шт.

4

1339685C3

PLATE ASSY.

PLATE - blower mounting

1шт.

5

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

1971238C1

VENT

LOUVER - cab, heating and air conditioning

3шт.

8

1999765C1

HOSE

- 163 mm (6-13/32 inch) long, cut from 236559A1 bulk hose, see below, air flow, upper, at center louver

1шт.

9

1999754C1

AIR HOSE

HOSE - 535 mm (21-1/16 inch) long, cut from 236559A1 bulk hose, see below, air flow, upper, at side louvers

2шт.

10

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long, side hose

4шт.

11

1999763C1

HOSE

- 305 mm (12 inch) long, cut from 1999759C1 bulk hose, see below, air flow, side

1шт.

12

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adj., 4-7/8 - 5-3/4 inch dia., side air hose

2шт.

13

1999767C1

DUCT

- plenum, pressure chamber, heat and air

1шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

16

F44903

RESISTOR

- blower speed, 24 volt

1шт.

17

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

2шт.

18

1546537C1

GROMMET

- vertical, blower mounting plate

1шт.

19

96901C1

GROMMET

- blower motor wire, horizontal, blower mounting plate

1шт.

20

188825A1

WASHER - rear window, not shown

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.

1999764C1

AIR HOSE

HOSE - bulk, 64 (2-1/2) ID x 15240 mm (600 inch) long

1шт.

1999759C1

PLASTIC-RUBBER TUBE

HOSE - bulk, 127 (5) ID x 7620 mm (300 inch) long

1шт.
