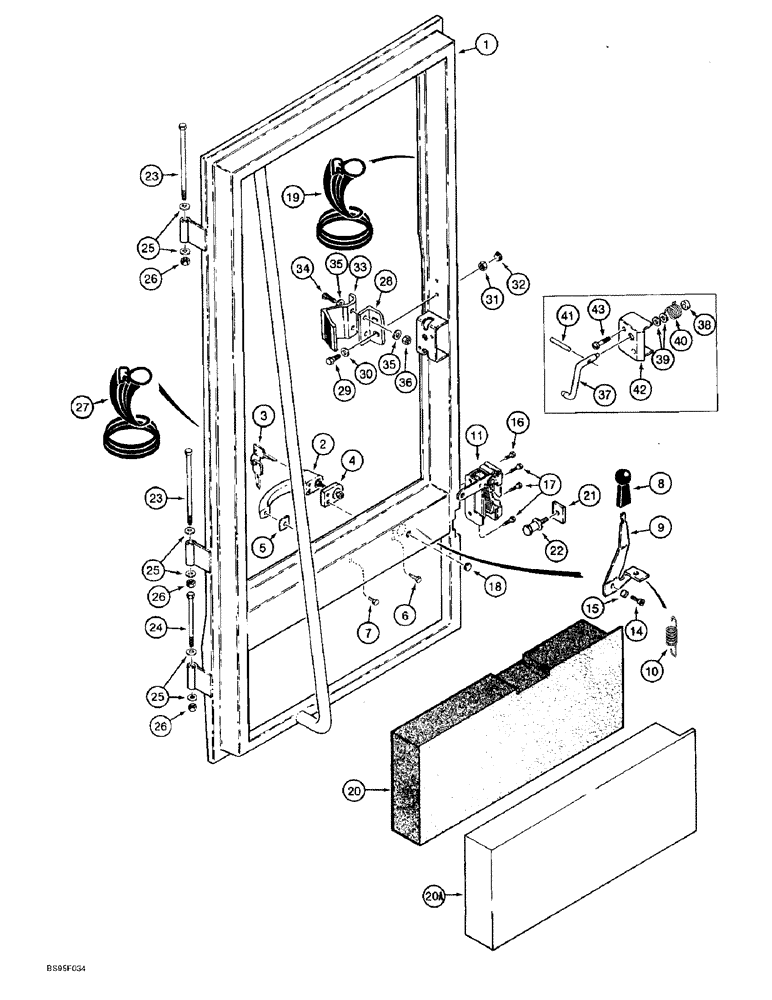

Запчасти Case 821B (9-070) - CAB DOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

115765A1

DOOR

FRAME - door, tan

1шт.

1

193335A1

DOOR

FRAME - door, gray

1шт.

2

1339958C1

HANDLE

- push button, outer door

1шт.

3

307852A1

SET OF 2 KEYS

KEY - metal, set of two, same as ignition key, replaces A77313 key

1шт.

4

1969996C1

SUPPORT

SPACER - handle, front

1шт.

5

1969997C1

SUPPORT

SPACER - handle, rear

1шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

8

D135387

GRIP

KNOB - lever

1шт.

9

1969988C2

HANDLE

- door, inner

1шт.

10

A163012

SPRING

- inner door

1шт.

11

1339959C1

LOCK ASSY

LATCH - door striker

1шт.

14

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket, 5/16 NC x 1-1/4 inch

1шт.

15

1981767C1

SPACER

- handle

1шт.

16

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

17

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

3шт.

18

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

19

1987254C1

DOOR SEAL

SEAL - 3099 mm (122 inch) long, cut from 1987253C1 bulk seal, door window frame

1шт.

20

1339939C2

LINING

PAD - interior cover, adhesive back, lower cab door, tan

1шт.

20a

179300A1

PADDING

PAD - interior cover, adhesive back, lower cab door, gray

1шт.

21

1339560C1

LARGE PLATE

PLATE - striker

1шт.

22

R51754

STRIKER

STRIKER - latch

1шт.

23

426-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 8

- hex, 3/8 NC x 6-1/2 inch, grade 8

2шт.

24

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

1шт.

25

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, plastic

6шт.

26

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self locking, 3/8 inch NC

3шт.

27

1987253C1

DOOR SEAL

- 4191 mm (165 inch) long, door

1шт.

28

1344258C1

ANGLE

BRACKET - latch mounting

1шт.

29

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

30

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

31

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

32

353-251

PLUG,15/16"

- button, 15/16 inch

2шт.

33

97398C1

LOCK ASSY

LATCH - push type, door window, plastic

1шт.

34

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

35

195-81029

WASHER,#10

(7/32 x 31/64 x 3/64") #10

4шт.

36

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC

2шт.

37

113973A1

HANDLE

ROD - latch, left-hand

1шт.

38

117005A1

SPACER

- spring

1шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

40

113974A1

SPRING

- left-hand

1шт.

41

38-11028

LOCK PIN,5/32" x 1 3/4", Slotted

Pin, 5/32" x 1 3/4", Slotted

1шт.

42

116927A1

DOOR COVER

COVER - latch, left-hand

1шт.

43

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #10-24 x 3/4"

2шт.
