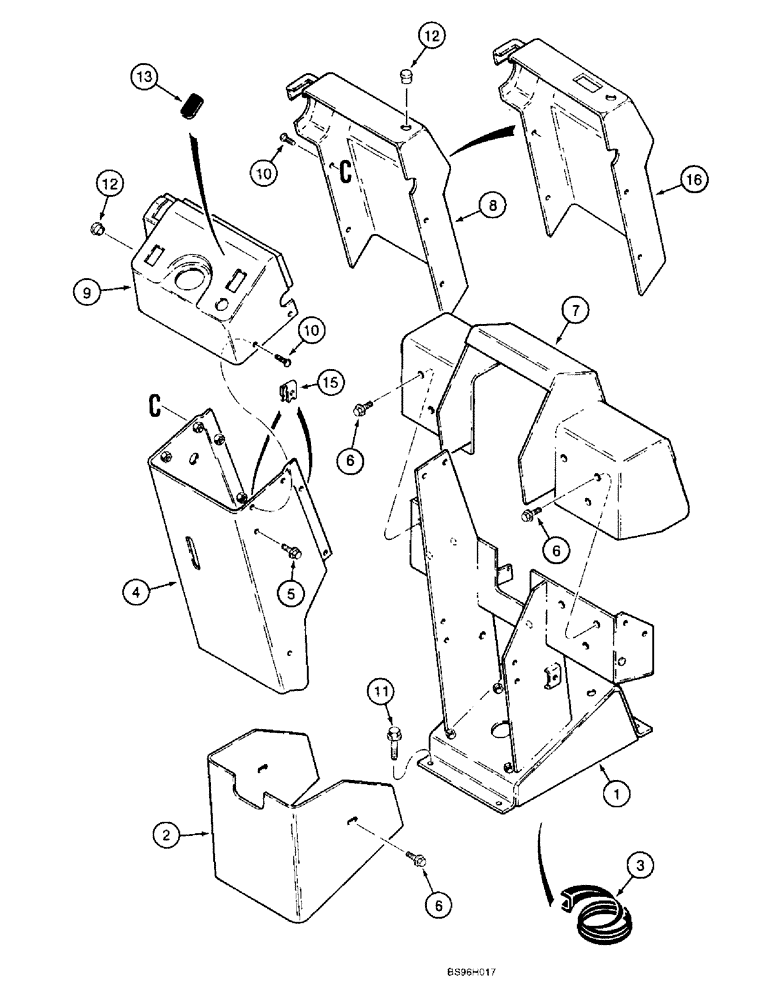

Запчасти Case 821B (9-064) - PEDESTAL AND COVERS, PEDESTAL WITH TAN COVERS (09) - CHASSIS/ATTACHMENTS

1

113656A1

PEDESTAL

BASE - pedestal, no longer available, order 193336A1 gray base shown on Figure 9-064A

1шт.

2

1344318C2

COVER

- pedestal, lower left-hand side, no longer available, order 193325A1 gray cover shown on Figure 9-064A

1шт.

3

1970021C1

GROMMET

TRIM - flexible, 324 mm (12-3/4 inch) long, pedestal

2шт.

4

1344080C4

COVER

- pedestal, covers upper rear and right-hand and left-hand sides, no longer available, order 1344079C4 gray cover shown on Figure 9-064A

1шт.

5

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

BOLT - hex flange, polyseal, 5/16 NC x 1/2 inch

4шт.

6

100142A1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 3/4", Gr 5

Special Hex Wash Hd, 5/16"-18 x 3/4", G5

6шт.

7

1344314C2

COVER

- brake shaft, no longer available, order 193324A1 gray cover shown on Figure 9-064A

1шт.

8

1344379C1

COVER

- pedestal, steering column, front

1шт.

9

1344380C1

COVER

- steering column, rear, see Fig. 4-14 for warning lamp and transmission speed selector control

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch

8шт.

11

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch

4шт.

12

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, if used

2шт.

13

245918C1

LENS

PLUG - rectangular, blanking, steering column cover, if used

2шт.

15

131-837

SPRING NUT,Tinn, U, 1/4"-20

8шт.

16

Not Used This Application

1шт.
