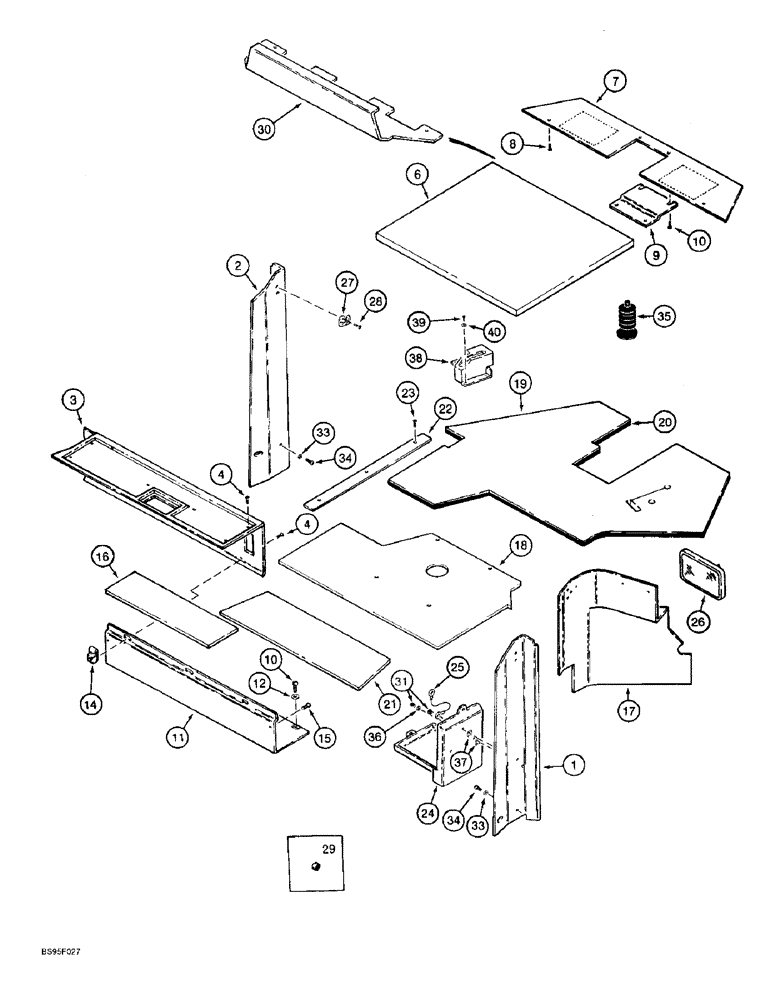

Запчасти Case 821B (9-061A) - CAB INTERIOR - GRAY (09) - CHASSIS/ATTACHMENTS

1

179326A1

PADDING

COVER - padded vinyl, right-hand rear

1шт.

2

179327A1

PADDING

COVER - padded vinyl, left-hand rear

1шт.

3

179463A1

DOOR COVER

COVER - formed, rear deck

1шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special, No. 10-16 x 3/4 inch

9шт.

6

179302A1

PADDING

HEADLINER - padded vinyl, center

1шт.

7

179304A1

PADDING

HEADLINER - padded vinyl, front

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special, No. 10-16 x 3/4 inch

2шт.

9

193320A1

DOOR COVER

COVER - mounting, use on units without radio

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch

8шт.

11

193653A1

HOOD

COVER - rear enclosure, behind seat

1шт.

12

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

4шт.

14

60-6708T1

NUT

NUT - U-type, special

3шт.

15

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

2шт.

16

1339754C3

FOAM INSULATION

PAD - insulation, rear panel

1шт.

17

179308A1

PADDING

COVER - padded vinyl, right-hand console

1шт.

18

1999639C1

CARPET

FLOORMAT - seat support

1шт.

19

L129442

FLOOR MAT

FLOORMAT - cab

1шт.

20

L129443

PADDING

PAD - insulation, floormat

1шт.

21

1339755C4

NOISE PROTECTION

PAD - insulation, rear floor

1шт.

22

1339790C1

COVER

- seal channel

1шт.

23

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch

3шт.

24

R46464

CASE

BOX - operators manual

1шт.

25

D126821

CABLE

CORD - manual retaining

1шт.

26

A177462

MIRROR

- rear view, includes mounting hardware

1шт.

27

114549A1

COAT HOOK

HOOK - coat

2шт.

28

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/4 inch

2шт.

29

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch, cab floor

4шт.

29

353-409

PLUG,Dome, .812" hole, Nylon

- button, 13/16 inch, cab floor, inside cab door

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Upper RH front and seat pedestal, LH side Dome, 1.000" hole, Nylon

2шт.

30

179297A1

PAD

PANEL - front insulation, fits in headliner area between Ref. 6 and 7 shown above

1шт.

31

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - pan Phillips, special, 1/4 NC x 1 inch

2шт.

33

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

2шт.

34

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch

2шт.

35

113833A1

BOOT

- rubber, accelerator pedal rod

1шт.

36

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

37

131-610

SPRING NUT,U, Ret, 1/4"-20

2шт.

38

193723A1

COVER

- lever, parking brake

1шт.

39

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch

4шт.

40

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

4шт.
