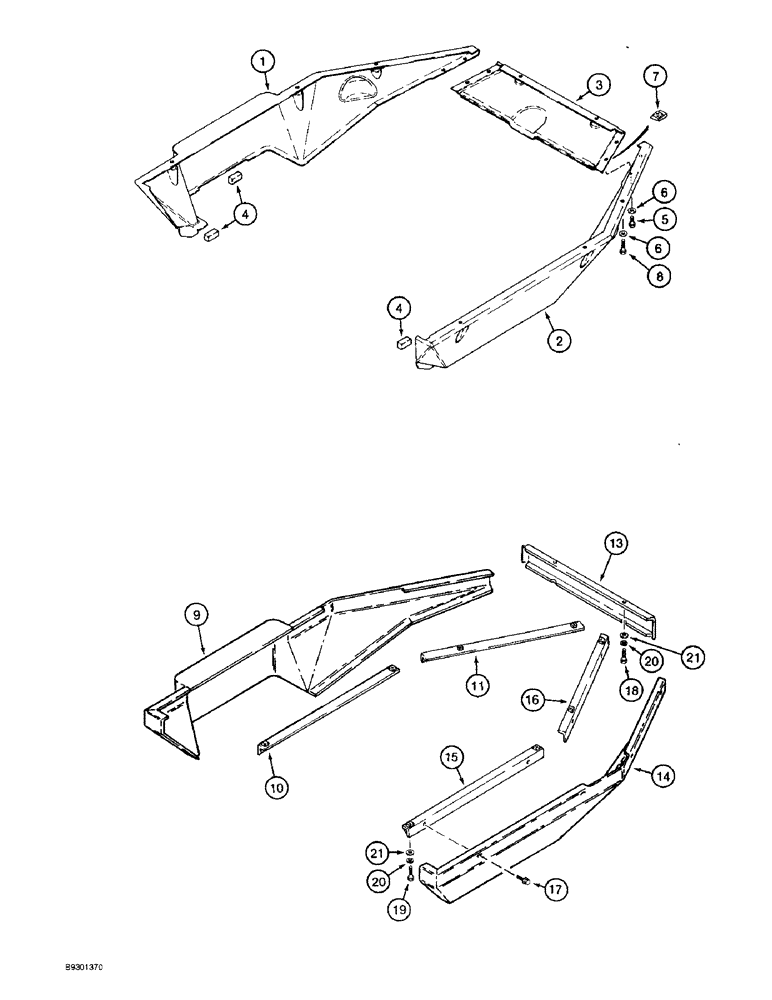

Запчасти Case 821B (9-056) - LOWER CAB AND CANOPY COVERS, PLASTIC COVERS, METAL COVERS (09) - CHASSIS/ATTACHMENTS

1

L129054

SKIRT

COVER - plastic, left-hand

1шт.

2

L129055

SKIRT

COVER - plastic, right-hand

1шт.

3

L129056

SKIRT

COVER - plastic, center

1шт.

4

L129961

SEALING STRIP

- adhesive-backed, 51 mm (2 inch) long

3шт.

5

409-1512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, self-locking, 5/16 NC x 3/4 inch

4шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

12шт.

7

786618C1

NUT

- U-type, 5/16 inch NC

4шт.

8

409-1520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, self-locking, 5/16 NC x 1-1/4 inch

8шт.

9

L126620

COVER

- metal, left-hand

1шт.

10

L129919

BRACKET

- left-hand cover, rear

1шт.

11

L129921

BRACKET

- left-hand cover, front

1шт.

13

L129618

SHEET

COVER - metal, center

1шт.

14

L125718

COVER

- metal, right-hand

1шт.

15

L129918

BRACKET

- right-hand cover, rear

1шт.

16

L129920

BRACKET

- right-hand cover, front

1шт.

17

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

8шт.

18

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

19

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

8шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

10шт.
