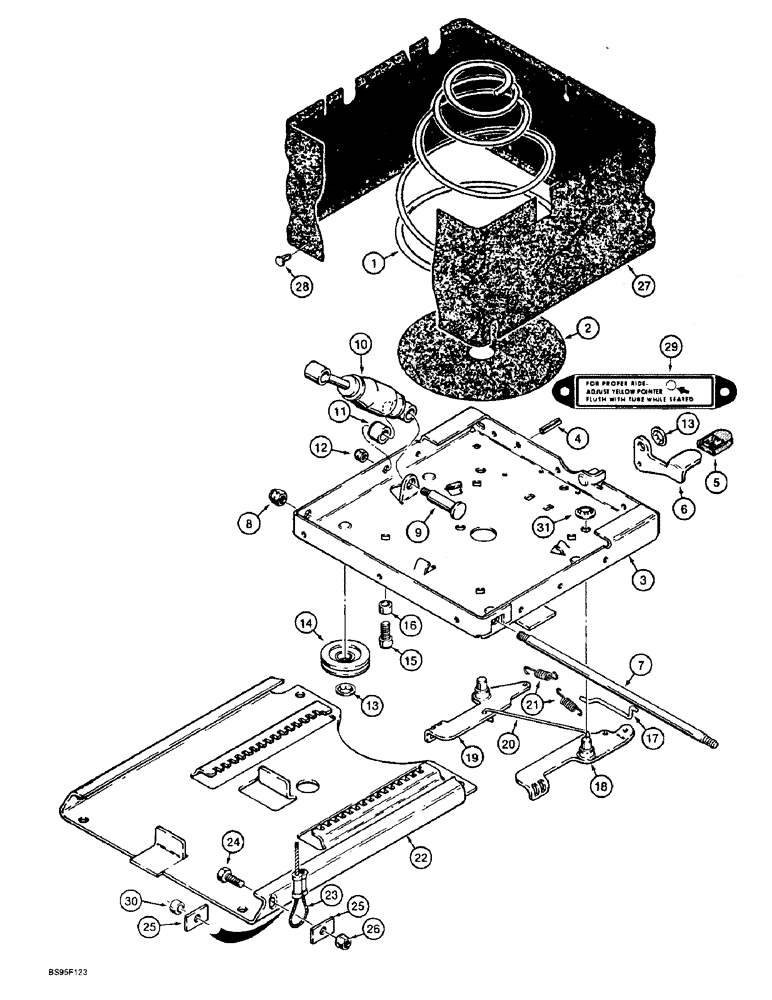

Запчасти Case 821B (9-052) - SUSPENSION SEATS - BROWN (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, includes parts in Figs. 9-48 and 9-50, includes: Ref. 1 - 30

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models,includes parts in Figs. 9-48 and 9-50, no longer available, order seat assembly 1954778C1, above, includes: Ref. 1 - 30

1шт.

130676A1

KIT

KIT - spring, also includes (two) 230-4218 nuts and (one) 230-4216 nut, not shown, includes: Ref. 1 and 2

1шт.

1

A45497

SPRING

- conical, no longer available, order 130676A1 kit

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

2

A45530

PAD

- spring, no longer available, order 130676A1 kit

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - lower

1шт.

4

38-11616

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

5

D82819

CAP

- slide lever

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

6

D82817

LEVER

- slide

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

7

112884A1

SHAFT,368mm L

- bearing

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

8

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

9

A45056

STEP BOLT

BOLT - shoulder, special

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

10

A45503

SHOCK ABSORBER

ABSORBER - shock, seat, seat

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

11

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber, replaces A45501 bearing

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

1977726C1

SLIDE

KIT - slide track, no longer available, order Refs. 13 and 14 below

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

14

D82820

ROLLER

- slide track, replaces N8674 roller

4шт.

15

165-181

BOLT,1/2" - 13 x 7/8"

- hex socket, 1/2 NC x 7/8 inch

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

16

N6713

SPACER

- bolt

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

17

D82814

ROD

- latch

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

18

D82813

LATCH

- right-hand

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

19

D82812

LATCH

- left-hand

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

20

D82816

LINK

- latch

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

21

D82815

SPRING

- latch

2шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE AND TRACK - seat

1шт.

23

REF

INSTRUCTION

CABLE - plate, see Ref. 22, Fig. 9-52

2шт.

24

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

25

N6874

WASHER

- special

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

1977727C1

BOOT

KIT - vinyl cover, includes: Ref. 27 - 29

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-48 and 9-50

1шт.

27

N6295

BOOT

COVER - vinyl

1шт.

28

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RETAINER - plastic, 1/4 hole size x 1/2 inch head dia.

22шт.

29

A47778

DECAL

- for proper ride

1шт.

30

N6713

SPACER

-

2шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, includes Refs. 1 and 2, 4 - 12 and 15 - 21

1шт.
