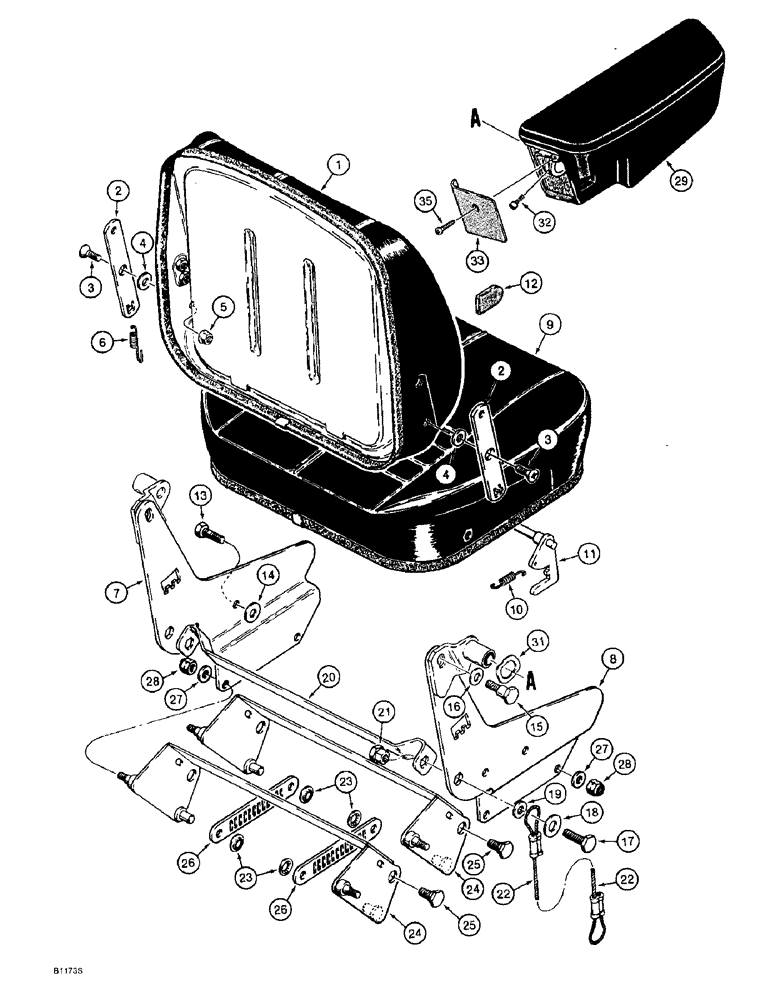

Запчасти Case 821B (9-048) - SUSPENSION SEATS - BROWN (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, includes parts in Fig. 9-50 and 9-52, includes: Ref. 1 - 35

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models, includes parts in Fig. 9-50 and 9-52

1шт.

233513A1

CUSHION

ASSEMBLY - seat back, vinyl, 1954778C1 seat assembly, replaces cushion assembly N9208, includes: Ref. 1 - 5

1шт.

N9203

CUSHION

ASSEMBLY - seat back, cloth, 97150C1 seat assembly, includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back

1шт.

2

N8679

LINK

- seat back

2шт.

3

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

231-5306

FLANGE NUT,Flg, 3/8"-16

NUT, LOCK, Flg, 3/8"-16

2шт.

6

N8680

SPRING

- seat back link

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - seat, left-hand

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - seat, right-hand

1шт.

9

N9207

CUSHION

- seat bottom, vinyl

1шт.

10

D82815

SPRING

- tilt shaft, replaces D82869 spring

2шт.

11

D82868

SHAFT

- seat tilt

1шт.

12

130921A1

KNOB

KIT - knob, replaces A47347 cap

1шт.

13

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

2шт.

14

A45110

WASHER

- special

2шт.

15

N14251

BOLT

- special, 3/8 NC x 1-21/32 inch, back tilt

2шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

17

D82872

BOLT

- special

2шт.

18

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

19

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

20

D82871

BAR

- spacer

1шт.

21

D82873

SPECIAL NUT

- hex, special

2шт.

22

D82874

CABLE

- side brackets

2шт.

23

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-50 and 9-52

1шт.

24

N6857

LINK

BRACKET - tie

2шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-50 and 9-52

1шт.

25

180627A1

LOCK BOLT,Shldr, Hex, 1/2" - 13 x 19mm

BOLT - shoulder, tie bracket retaining, replaces A45473 bolt

4шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-50 and 9-52

1шт.

26

A47383

LINK

LEVER - adjusting

1шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-50 and 9-52

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

28

131-542

LOCK NUT,3/8"-16

NUT - light hex, self-locking, 3/8 inch NC

4шт.

1977724C1

ARM

KIT - right-hand armrest, includes: Refs. 29, 31, 32, 33, and 35 listed below

1шт.

1977723C1

ARMREST ASSY.

KIT - left-hand armrest, includes: Refs. 30, 31, 32, 34, and 35 listed below

1шт.

29

N8536

ARMREST

- seat, right-hand

1шт.

30

N9032

ARM

REST - seat, left-hand, not shown, no longer available, order 1977723C1 kit

1шт.

31

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

32

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

33

A45584

COVER

PLATE - cover, right-hand armrest

1шт.

34

A45583

PLATE

- cover, left-hand armrest, not shown

1шт.

35

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, flat head slotted, No. 10-16 x 5/8 inch

2шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, includes Refs. 23 - 26

1шт.
