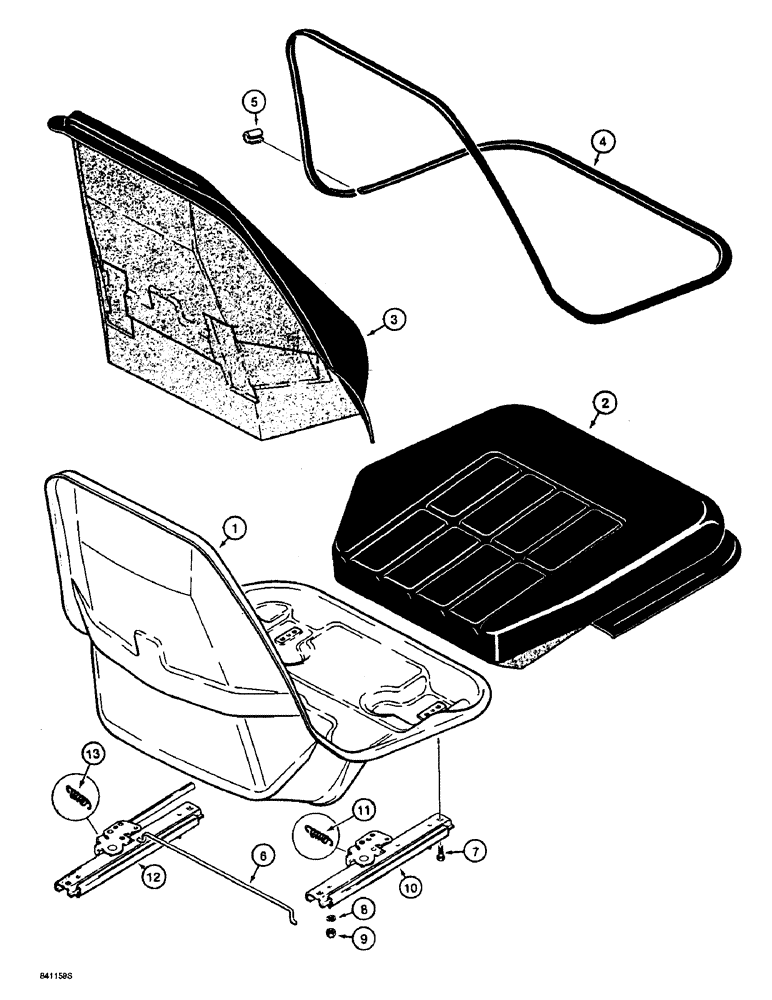

Запчасти Case 821B (9-046) - NON-SUSPENSION SEAT, BROWN NON-SUSPENSION SEAT, GRAY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
L108783
SEAT
ASSEMBLY - non-suspension, brown, includes: Ref. 1 - 13
1шт.
1
NSS
NOT SOLD SEPARAT
SHELL - seat
1шт.
2
N8462
CUSHION
KIT - seat cushion, includes N7802 clip kit, brown vinyl, see below
1шт.
3
N8461
CUSHION
KIT - backrest cushion, includes N7802 clip kit, brown vinyl, see below
1шт.
4
N14614
GASKET
TRIM - edge, edge, strip, cushion and shell
1шт.
5
NSS
NOT SOLD SEPARAT
CLIP - retainer, see below, order N7802 clip kit
1шт.
6
L35492
ROD
- connecting
1шт.
7
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
- hex, 5/16 NC x 5/8 inch
4шт.
9
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
4шт.
10
A64818
ADJUSTER
SLIDE - seat, right-hand, includes: Ref. 11
1шт.
11
L35503
SPRING
- slide
1шт.
12
D59688
SLIDE
- seat, left-hand, with handle, includes: Ref. 13
1шт.
13
L35503
SPRING
- slide
1шт.
N7802
CLIP
KIT - clip, includes Ref. 5 and six additional narrow clips
1шт.
178765A1
SEAT
ASSEMBLY - non-suspension gray, includes: Ref. 1 - 13
1шт.
1
NSS
NOT SOLD SEPARAT
SHELL - seat
1шт.
2
190875A1
CUSHION, SEAT
KIT - seat cushion, gray vinyl, see below
1шт.
3
190874A1
BACKREST COVER
KIT - backrest cushion, includes N7802 clip kit, gray vinyl, see below
1шт.
4
NSS
NOT SOLD SEPARAT
RETAINER - strip, cushion and shell
1шт.
5
NSS
NOT SOLD SEPARAT
CLIP - retainer, see below, order N7802 clip kit
1шт.
6
L35492
ROD
- connecting
1шт.
7
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
- hex, 5/16 NC x 5/8 inch
4шт.
9
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
4шт.
10
A64818
ADJUSTER
SLIDE - seat, right-hand, includes: Ref. 11
1шт.
11
L35503
SPRING
- slide
1шт.
12
D59688
SLIDE
- seat, left-hand, with handle, includes: Ref. 13
1шт.
13
L35503
SPRING
- slide
1шт.
N7802
CLIP
KIT - clip, includes Ref. 5 and six additional narrow clips
1шт.
Выбрано товаров: 30
