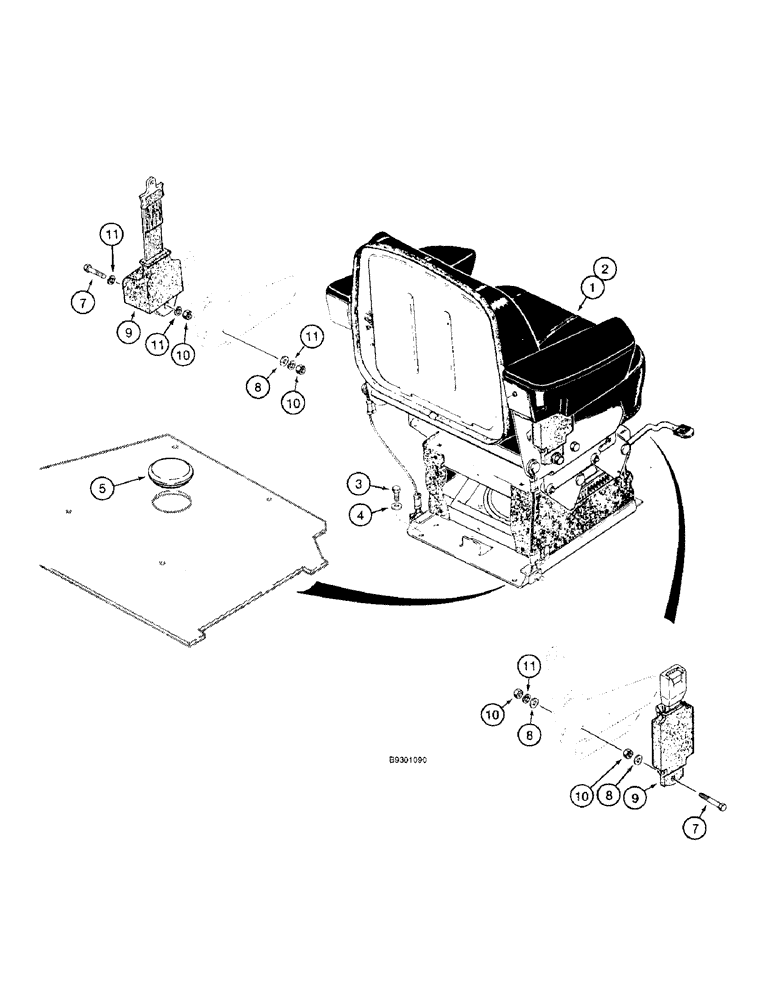

Запчасти Case 821B (9-044) - SEAT AND MOUNTING PARTS, SUSPENSION SEAT, SEAT MOUNTING, 51 (09) - CHASSIS/ATTACHMENTS

1

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, brown, cab or canopy, parts list Figs. 9-48 - 9-52

1шт.

1

177639A1

SEAT

ASSEMBLY - suspension, vinyl, gray, cab or canopy, parts list Figs. 9-53A - 9-53G

1шт.

2

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, brown, cab only, parts list Figs. 9-48 - 9-52, no longer available, order seat assembly 1954778C1 above

1шт.

2

177638A1

SEAT

ASSEMBLY - suspension, cloth, gray, cab only, parts list Figs. 9-53A - 9-53G

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

4

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

5

353-255

PLUG,3 1/2"

- button, 3-1/2 inch

1шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

8

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

3шт.

9

R58339

SAFETY BELT ,2.00" W

Retractable 2.00" W

1шт.

10

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

4шт.

11

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

8

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

3шт.

9

R58418

SAFETY BELT ,3.00" W

Retractable 3.00" W

1шт.

10

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

4шт.

11

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.
