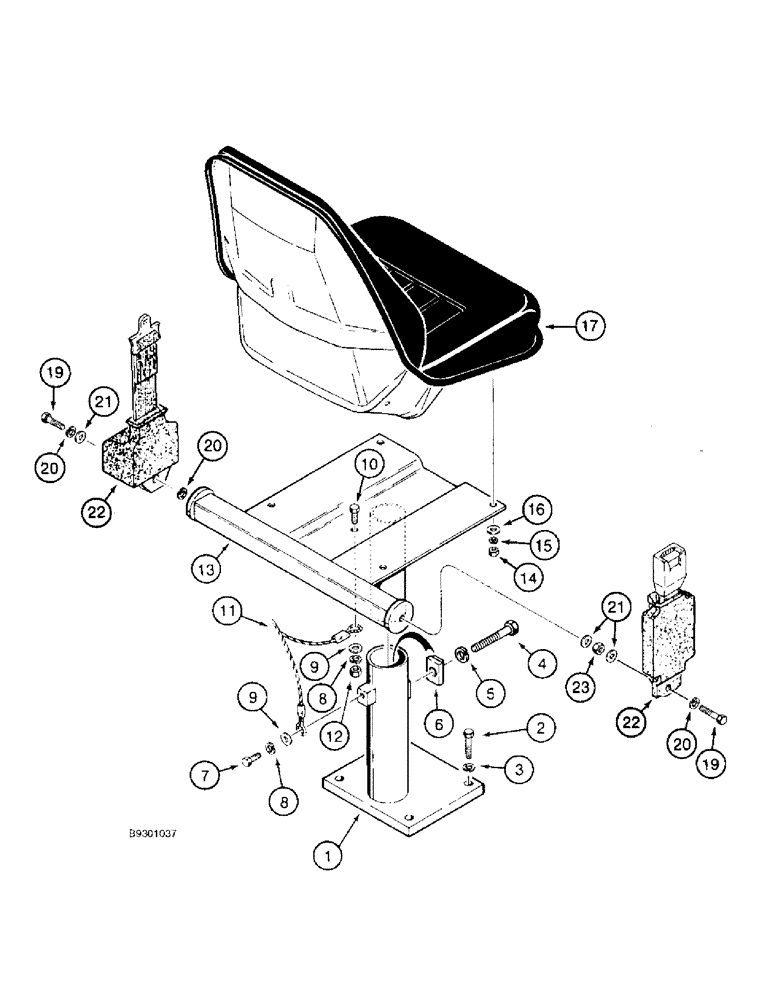

Запчасти Case 821B (9-042) - SEAT AND MOUNTING PARTS, NON-SUSPENSION SEAT, SEAT MOUNTING, (09) - CHASSIS/ATTACHMENTS

1

97395C1

SUPPORT

- seat, lower, brown

1шт.

1

199517A1

SUPPORT

- seat, lower, gray

1шт.

2

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

1шт.

5

492-21062

LOCK WASHER,5/8"

1шт.

6

L59950

NUT

- block, special

1шт.

7

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

L110228

CABLE

- galvanized steel

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

97394C2

SUPPORT

- seat, upper, brown

1шт.

13

199516A1

SUPPORT

- seat, upper, gray

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

17

L108783

SEAT

ASSEMBLY - non-suspension, brown, parts list Fig. 9-46

1шт.

17

178765A1

SEAT

ASSEMBLY - non-suspension, gray, parts list Fig. 9-46

1шт.

19

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

3шт.

22

R58339

SAFETY BELT ,2.00" W

Retractable 2.00" W

1шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

19

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

3шт.

22

R58418

SAFETY BELT ,3.00" W

Retractable 3.00" W

1шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.
