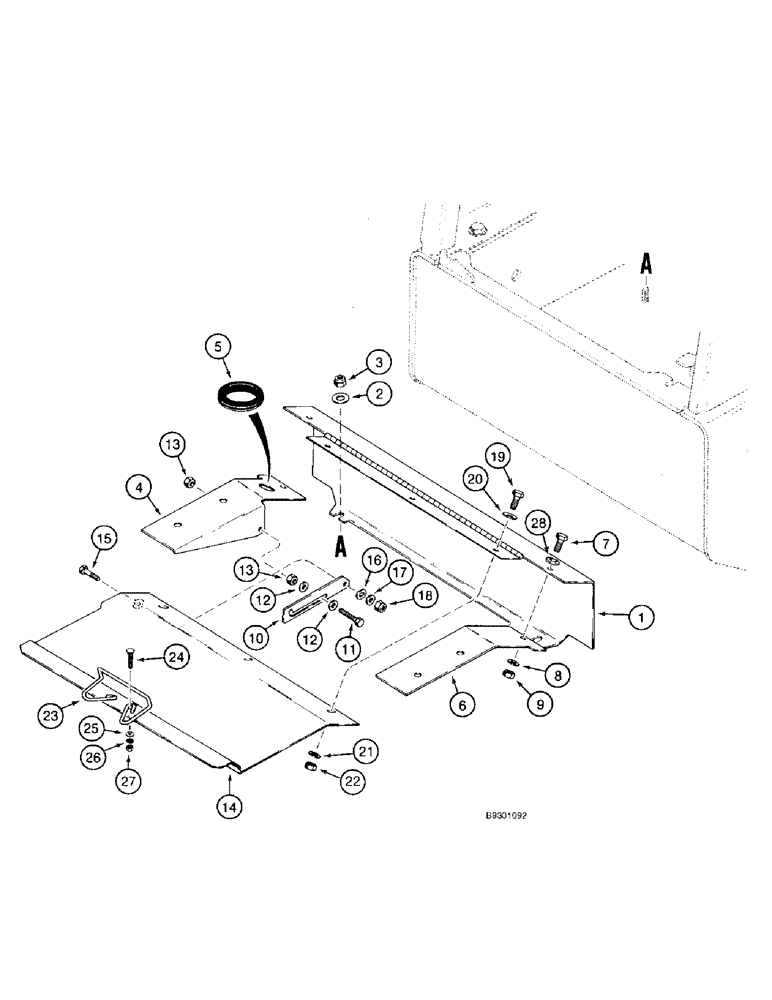

Запчасти Case 821B (9-036) - BATTERY COVERS (09) - CHASSIS/ATTACHMENTS

1

L128952

GUARD ASSY.

COVER - radiator

1шт.

2

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2-3шт.

3

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2-3шт.

4

L125968

LARGE PLATE

BRACKET - support, left-hand, battery cover, uses radiator guard mounting hardware shown on Fig. 9-34

1шт.

5

248-2156

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber, 1-3/4 inch groove diameter, left-hand bracket

1шт.

6

L125969

LARGE PLATE

BRACKET - support, right-hand, battery cover, uses radiator guard mounting hardware shown on Fig. 9-34

1шт.

7

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

L125491

LARGE PLATE

BRACKET - cover support

1шт.

11

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

12

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

13

329-105

NUT,5/16"-18, G8

2шт.

14

L125446

COVER

- battery

1шт.

15

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

16

S69662

WASHER

- flat, special

1шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

19

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

3шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

425-106

NUT,3/8"-16, Cl 5

3шт.

23

L125636

HANDLE

- hold down

1шт.

24

411-310

CARRIAGE BOLT,3/16" - 24 x 5/8", Gr 2

BOLT - carriage, 3/16 NC x 5/8 inch, grade 2

2шт.

25

495-31022

WASHER,#10

2шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

27

225-14110

NUT,#10-24

Machine screw #10-24

2шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.
