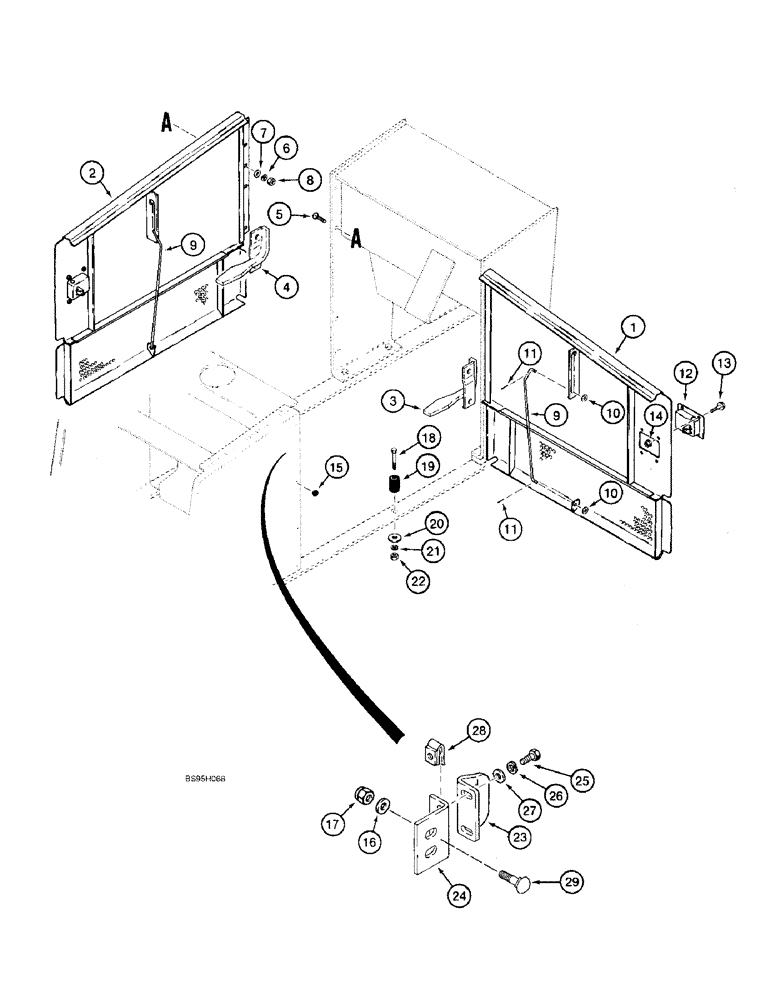

Запчасти Case 821B (9-032) - SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

119508A1

DOOR

- engine access with tool tray, right-hand side

1шт.

2

119509A1

DOOR

- engine access with tool tray, left-hand side

1шт.

3

L129473

RETAINER

STOP - tool tray, right-hand

1шт.

4

L129474

RETAINER

STOP - tool tray, left-hand

1шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

6

492-11038

LOCK WASHER,3/8"

10шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

10шт.

8

425-106

NUT,3/8"-16, Cl 5

10шт.

9

L125405

ROD

- support, door

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

12

R56221

LATCH

- door

2шт.

13

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

8шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

8шт.

15

L126856

RIVET

CUSHION - rubber

8шт.

16

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

18

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

19

D33216

PIVOT

SPACER - rubber, 2 inch long, fastens to rear frame below side doors

2шт.

20

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, special, 3/8 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

L127958

LARGE PLATE

PLATE - striker

2шт.

24

112924A1

SUPPORT

BRACKET - catch

2шт.

25

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

28

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16 inch NC

4шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

The hinges that are part of the doors (one horizontal and one vertical) are NSS per Mike Lisco 7/3/99 sb

1шт.
