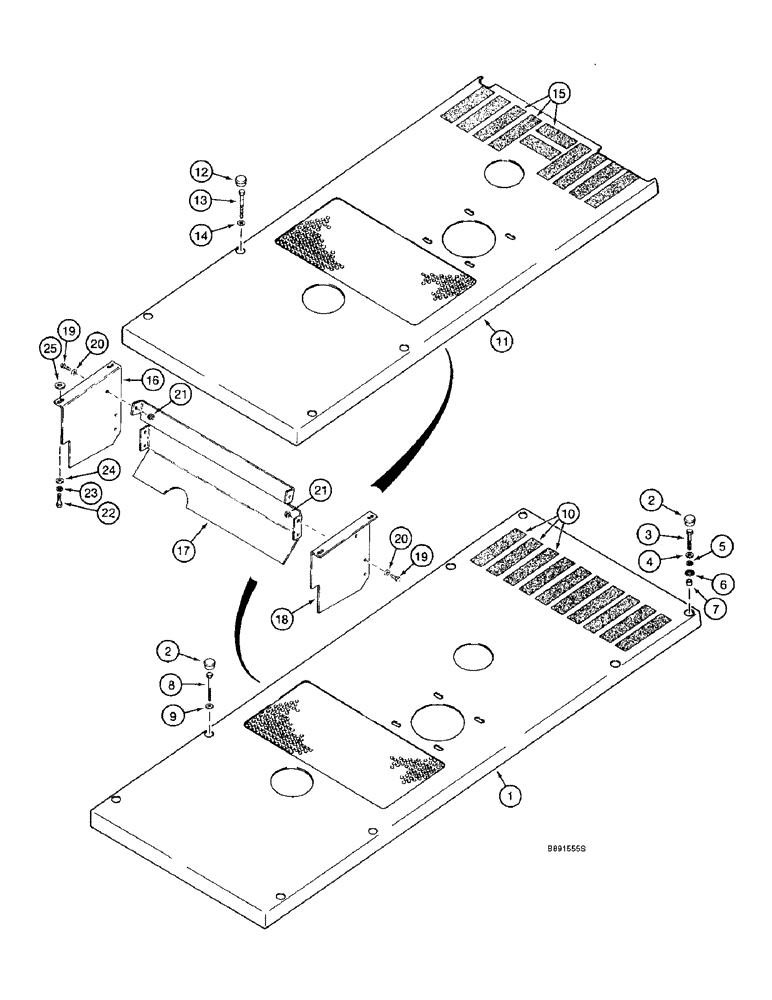

Запчасти Case 821B (9-030) - HOOD, MODELS W/OUT AIR CONDITIONING, MODELS W/ AIR CONDITIONING, MODELS WITH SUCTION FAN (09) - CHASSIS/ATTACHMENTS

1

L128427

HOOD ASSY.

HOOD - engine top, use on units without air conditioning, brown

1шт.

1

194203A1

HOOD ASSY.

HOOD - engine top, use on units without air conditioning, tan

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- button, 1-3/16 inch

8шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

4шт.

7

D76211

SPACER

- hood

4шт.

8

113-2287

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5, Full Thd

4шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

10

D55216

PAD,2" x 9"

PAD - anti-skid, upper hood, front

10шт.

11

L128429

HOOD

- engine top, use on units with air conditioning, brown

1шт.

11

193192A1

HOOD ASSY.

HOOD - engine top, use on units with air conditioning, tan

1шт.

12

353-413

PLUG,Dome, 1.187" hole, Nylon

- button, 1-3/16 inch

4шт.

13

113-2287

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5, Full Thd

4шт.

14

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

15

D55216

PAD,2" x 9"

PAD - anti-skid, upper hood, front

10шт.

16

L128187

DEFLECTOR

BAFFLE - cooler, left-hand

1шт.

17

L128188

DEFLECTOR

BAFFLE - cooler, center

1шт.

18

L128186

DEFLECTOR

BAFFLE - cooler, right-hand

1шт.

19

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

6шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

21

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

22

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

25

R24323

WASHER

- flat, special, if used

4шт.

26

255823A1

SEAL

- air conditioner, not shown

2шт.
