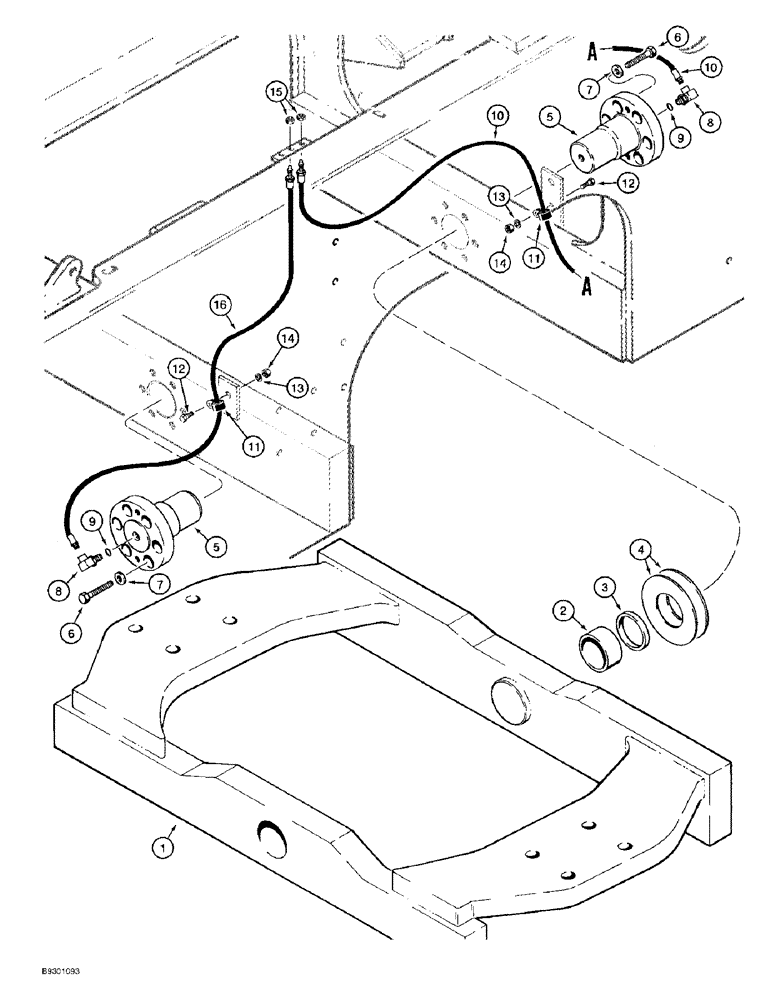

Запчасти Case 821B (9-028) - TRUNNION AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

114527A1

TRUNNION

ASSEMBLY - rear frame, includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

2

L109938

BUSHING,70.18mm ID x 82.69mm OD x 41mm L

- trunnion

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod

2шт.

4

302573A1

SHIM

- 3.18 mm (1/8 inch) thick, replaces L110183 shim

1шт.

4

302574A1

SHIM

- 4.76 mm (3/16 inch) thick, replaces L110184 shim

1шт.

5

L125294

TRUNNION

PIN - trunnion

2шт.

6

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch

12шт.

8

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

- 90 degree, 7/16-20 O-ring boss x 1/8 inch female PT, includes: Ref. 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

L54694

HOSE,4.8mm ID x 1041mm L

- 1041 mm (41 inch) long

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

2шт.

12

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

F53473

LOCK NUT,1/8-27 NPSM

- special, lubrication hose

2шт.

16

L72667

HOSE

- 1524 mm (60 inch) long, lubrication, rear trunnion

1шт.
