(9-022) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT

Запчасти Case 821B (9-022) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

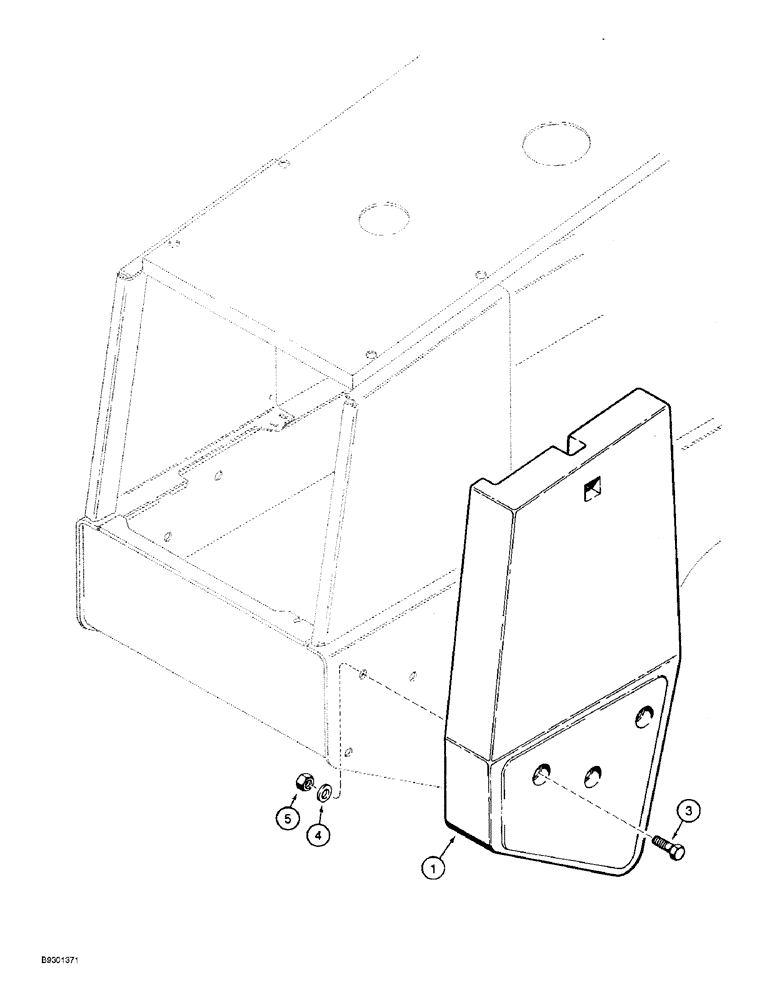

Схема запчастей Case 821B - (9-022) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS
5
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L125464

BALANCER

COUNTERWEIGHT - 1200 pound, right-hand rear

1шт.

2

L125465

BALANCER

COUNTERWEIGHT - 1200 pound, left-hand rear, not shown

1шт.

3

326-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

6шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

6шт.

5

425-1016

NUT,1"-8, G5

6шт.
