(9-020) - PINTLE HITCH ASSEMBLY AND MOUNTING

Запчасти Case 821B (9-020) - PINTLE HITCH ASSEMBLY AND MOUNTING (09) - CHASSIS/ATTACHMENTS

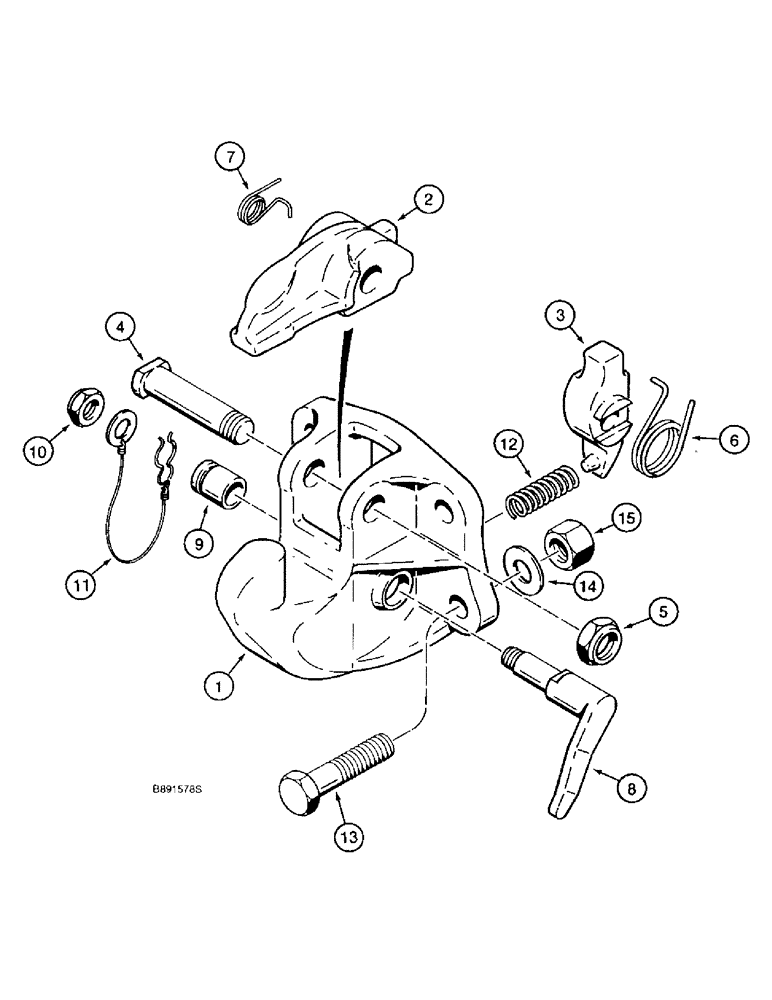

Схема запчастей Case 821B - (9-020) - PINTLE HITCH ASSEMBLY AND MOUNTING (09) - CHASSIS/ATTACHMENTS
9
13
11
12
14
3
15
10
8
6
4
2
7
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L125486

DRAW HOOK

HITCH ASSEMBLY - pintle, includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - pintle

1шт.

2

S300978

LEVER

LATCH - hitch

1шт.

3

S300979

LEVER

CATCH - hitch

1шт.

4

S300980

PIN

- 7/8 x 3-5/8 inch long

1шт.

5

131-475

NUT,7/8"-9

NUT - heavy hex, self-locking, 7/8 inch NC

1шт.

6

S300981

SPRING

- catch

1шт.

7

S300982

SPRING

- latch

1шт.

8

S300983

LEVER

HANDLE - hitch

1шт.

9

S300984

BUSHING

- handle

1шт.

10

S300985

LOCK NUT

- self-locking, special

1шт.

11

S300986

CLIP, SPRING

CLIP - includes cable

1шт.

12

S300987

SPRING

- compression

1шт.

13

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch

4шт.

15

329-1012

NUT,3/4"-10, G8

4шт.
