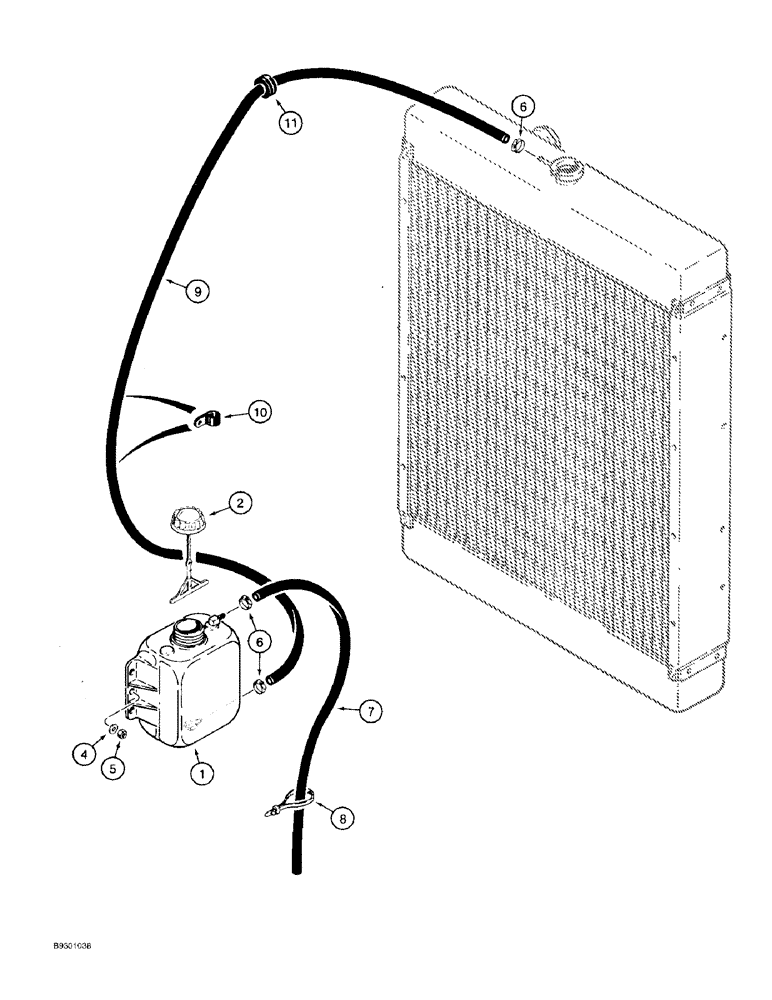

Запчасти Case 821B (2-08) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

103846A1

CONTAINER

RESERVOIR - coolant recovery, 3.7 liters

1шт.

2

1547924C1

CAP

- recovery bottle

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type

3шт.

7

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

Reservoir Drain 7.9 mm ID x 1219.00 mm, SAE 30R1

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

L125870

HOSE,7.9 mm ID x 1370.00 mm, SAE 30R6

Radiator to Reservoir 7.9 mm ID x 1370.00 mm, SAE 30R6

1шт.

10

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Reservoir hose to radiator guard 9/16", Insul, 3/8" Bolt

2шт.

11

248-13107

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

Rubber 3/4" ID x 1 1/16" Groove Dia, Str Cut

1шт.
