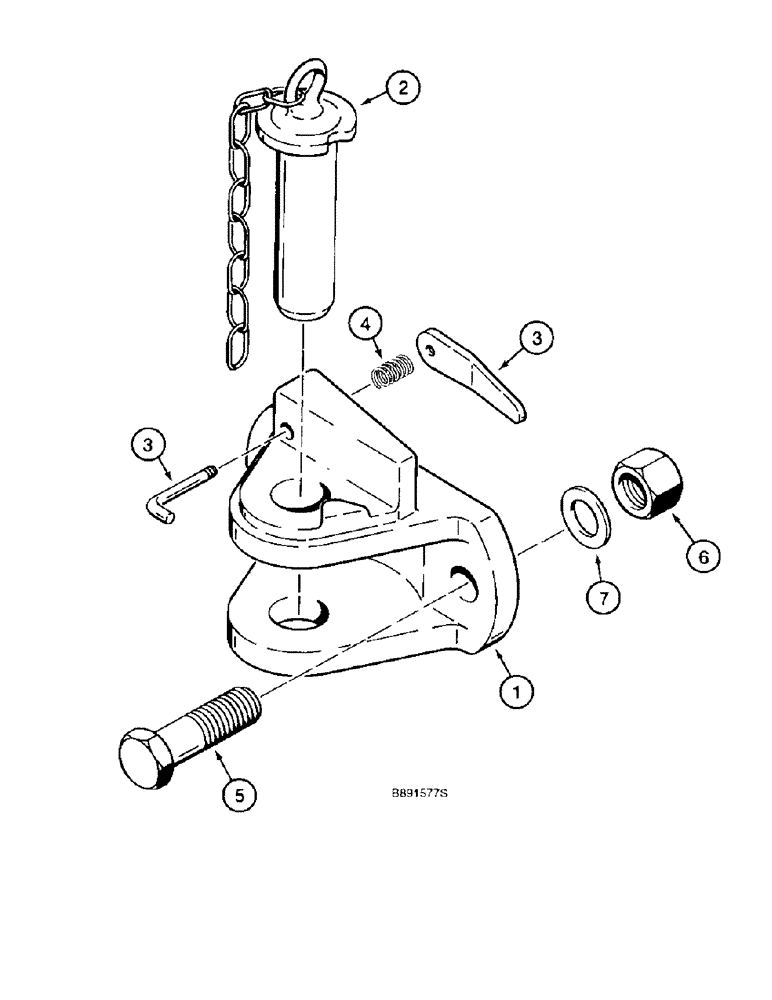

Запчасти Case 821B (9-018) - CLEVIS HITCH ASSEMBLY AND MOUNTING (09) - CHASSIS/ATTACHMENTS

L125487

HITCH ASSY

HITCH ASSEMBLY - clevis, includes pin, includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - clevis

1шт.

2

S300988

PIN

Includes Chain

1шт.

3

S300989

HANDLE

- includes locking pin

1шт.

4

S300990

SPRING

- compression

1шт.

5

326-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

2шт.

6

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

2шт.

7

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

2шт.
