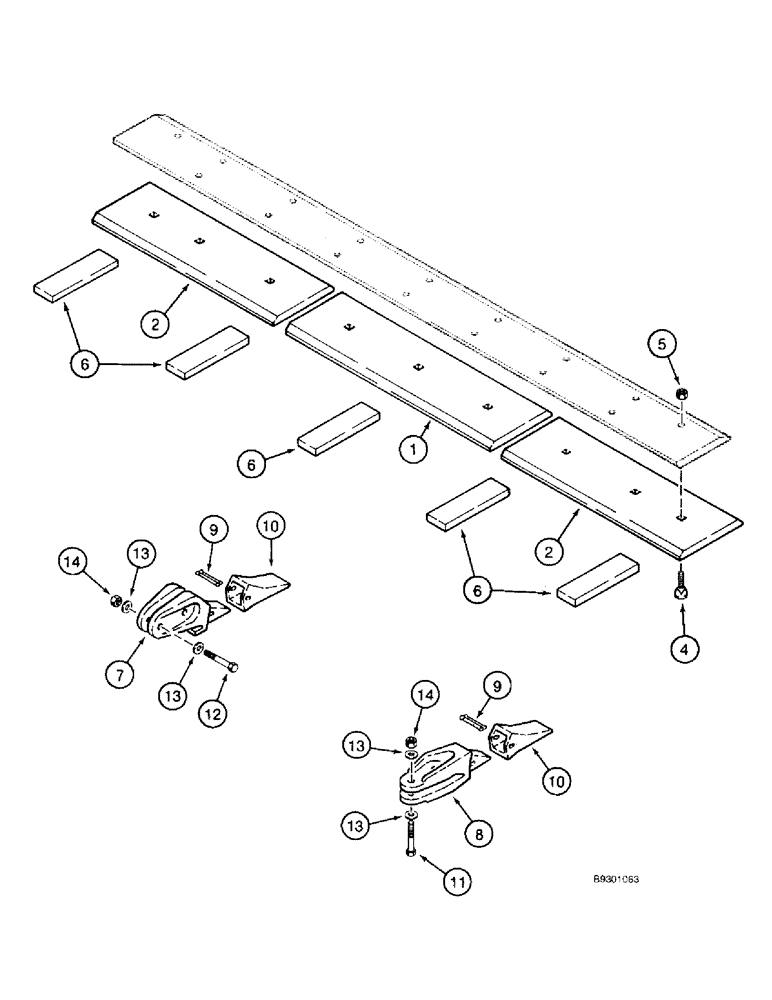

Запчасти Case 821B (9-014) - AUXILIARY BUCKET, CUTTING EDGES, WEAR PLATES, & BUCKET TEETH, BOLT ON CUTTING EDGES & WEAR PLATES (09) - CHASSIS/ATTACHMENTS

1

L125171

EDGE, CUTTING

EDGE - cutting, center, 1009 mm long, bolt-on, used with (2) Ref. 2, L125172, bolt-on edges shown below and Ref. 15, L125135, weld-on edge shown on Fig. 9-12

1шт.

2

L125172

EDGE, CUTTING

EDGE - cutting, end, 874 mm long, bolt-on, used with Ref. 1, L125171, bolt-on edge shown above and Ref. 15, L125135, weld-on edges, shown on Fig. 9-12

2шт.

4

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8

9шт.

5

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

9шт.

6

R28128

LARGE PLATE

PLATE - wear, weld-on

5шт.

L125197

TEETH

TOOTH ASSEMBLY - bucket, corner, marked H & L, if used, includes: Ref. 7 - 10

2шт.

R51174

TEETH

TOOTH ASSEMBLY - bucket, center, marked H & L, if used, includes: Ref. 7 - 10

7шт.

7

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner

1шт.

8

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center

1шт.

9

R29117

PIN, ROLL

PIN - flex, point retaining

1шт.

10

R51388

POINT

- tooth

1шт.

11

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

14шт.

12

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

4шт.

13

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

36шт.

14

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

18шт.
