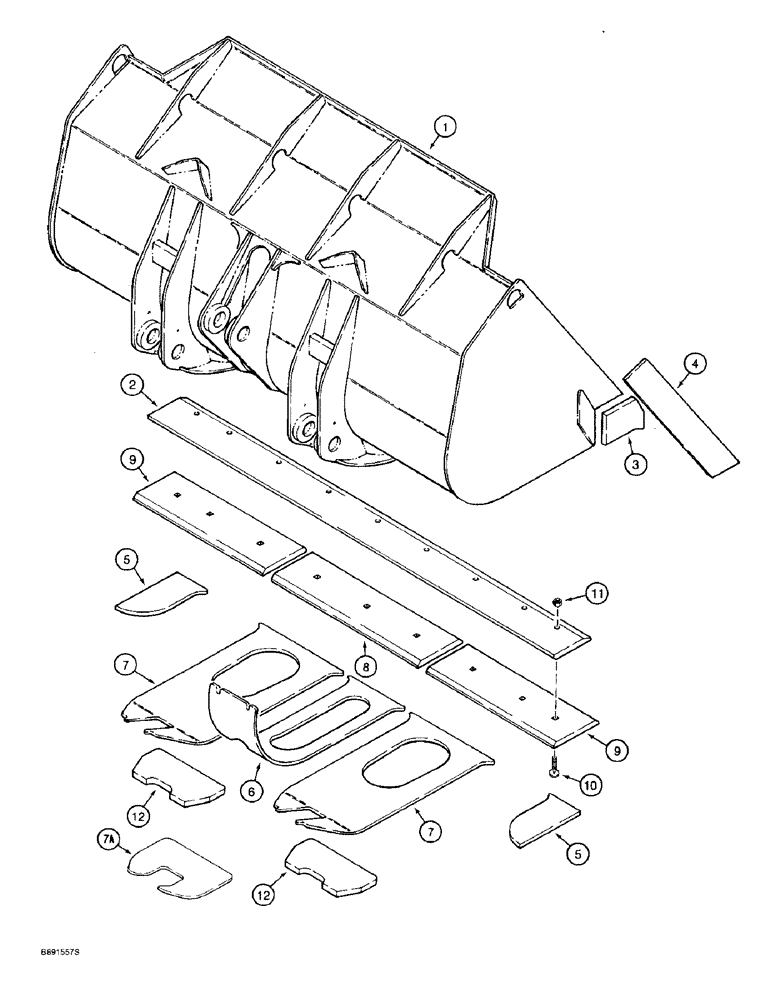

Запчасти Case 821B (9-010) - LOADER BUCKET AND CUTTING EDGES, 4.0 CUBIC YARD (3.4 CUBIC METRE) BUCKET, BOLT ON CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

L129341

BUCKET ASSEMBLY - loader, order from Machinery Price List, includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L129401

EDGE, CUTTING

EDGE - cutting, bucket, weld-on

1шт.

3

L125772

EDGE, CUTTING

EDGE - cutting, bucket corner, weld-on

2шт.

4

L125726

EDGE, CUTTING

EDGE - cutting, bucket side, weld-on

2шт.

5

L125741

LARGE PLATE

PLATE - wear, outer

2шт.

6

L129361

LARGE PLATE

PLATE - wear, center

1шт.

7

L129362

LARGE PLATE

PLATE - wear, bucket ear

2шт.

7a

L127766

LARGE PLATE

PLATE - wear, bucket ear, partial, if used

2шт.

8

L125171

EDGE, CUTTING

EDGE - cutting, center, 1009 mm long, bolt-on

1шт.

9

L125172

EDGE, CUTTING

EDGE - cutting, end, 874 mm long, bolt-on

2шт.

10

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8

9шт.

11

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

9шт.

12

L125498

LARGE PLATE

PLATE - wear, bucket ear

2шт.
