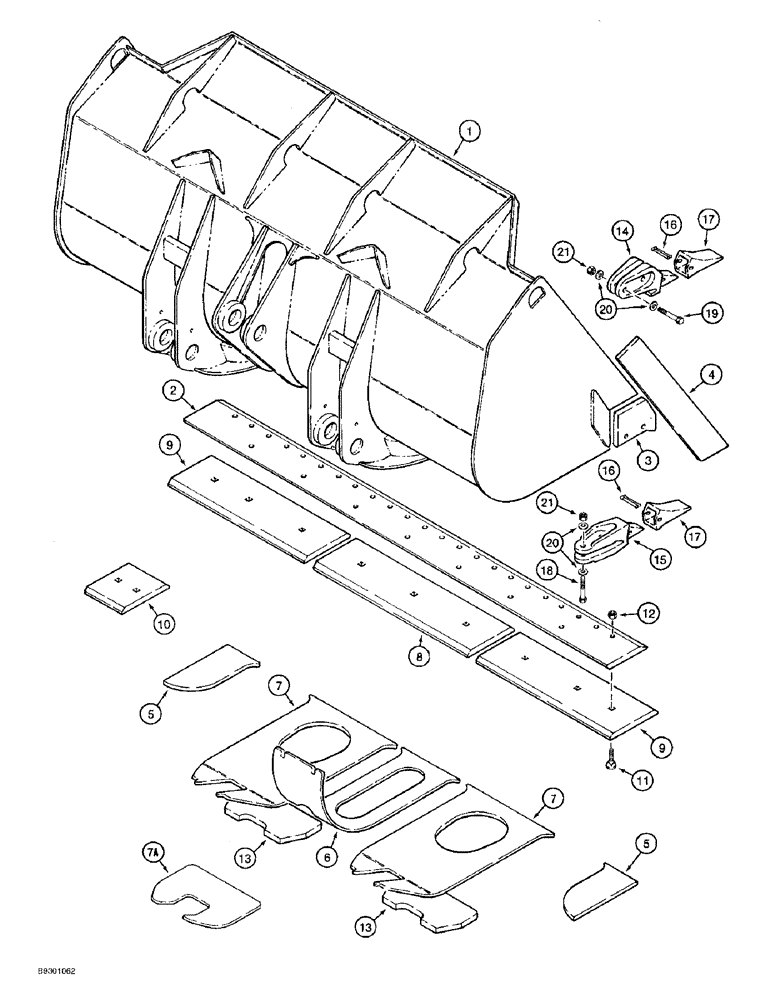

Запчасти Case 821B (9-008) - LOADER BUCKET AND CUTTING EDGES, 3.5 CUBIC YARD (2.7 CUBIC METRE) BUCKET, BOLT ON CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

L125990

BUCKET

ASSEMBLY - loader, order from Machinery Price List, includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L129400

EDGE

- cutting, weld-on

1шт.

3

L125136

EDGE, CUTTING

EDGE - cutting, bucket corner, weld-on

2шт.

4

L125145

EDGE, CUTTING

EDGE - cutting, bucket side, weld-on

2шт.

5

L125741

LARGE PLATE

PLATE - wear, outer

2шт.

6

L129359

LARGE PLATE

PLATE - wear, center

1шт.

7

L129360

LARGE PLATE

PLATE - wear, bucket ear

1шт.

7a

L127766

LARGE PLATE

PLATE - wear, bucket ear, partial, if used

2шт.

8

L125171

EDGE, CUTTING

EDGE - cutting, center, 1009 mm long, bolt-on, used with (2) Ref. 9, bolt-on edges and Ref. 2, weld-on edge, shown above

1шт.

9

L125172

EDGE, CUTTING

EDGE - cutting, end, 874 mm long, bolt-on, used with Ref. 8, bolt-on edge, and Ref. 2, weld-on edge, shown above

2шт.

10

L125814

EDGE, CUTTING

EDGE - cutting, 230 mm long, bolt-on, used with Ref. 2, weld-on edge, shown above

8шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8

9-16шт.

12

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

9-16шт.

13

L125498

LARGE PLATE

PLATE - wear, bucket ear

2шт.

L125197

TEETH

TOOTH ASSEMBLY - bucket, corner, marked H & L, if used, includes: Ref. 14 - 17

2шт.

R51174

TEETH

TOOTH ASSEMBLY - bucket, center, marked H & L, if used, includes: Ref. 14 - 17

7шт.

14

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner

1шт.

15

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center

1шт.

16

R29117

PIN, ROLL

PIN - flex

1шт.

17

R51388

POINT

- tooth

1шт.

18

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

14шт.

19

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

4шт.

20

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

36шт.

21

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

18шт.
