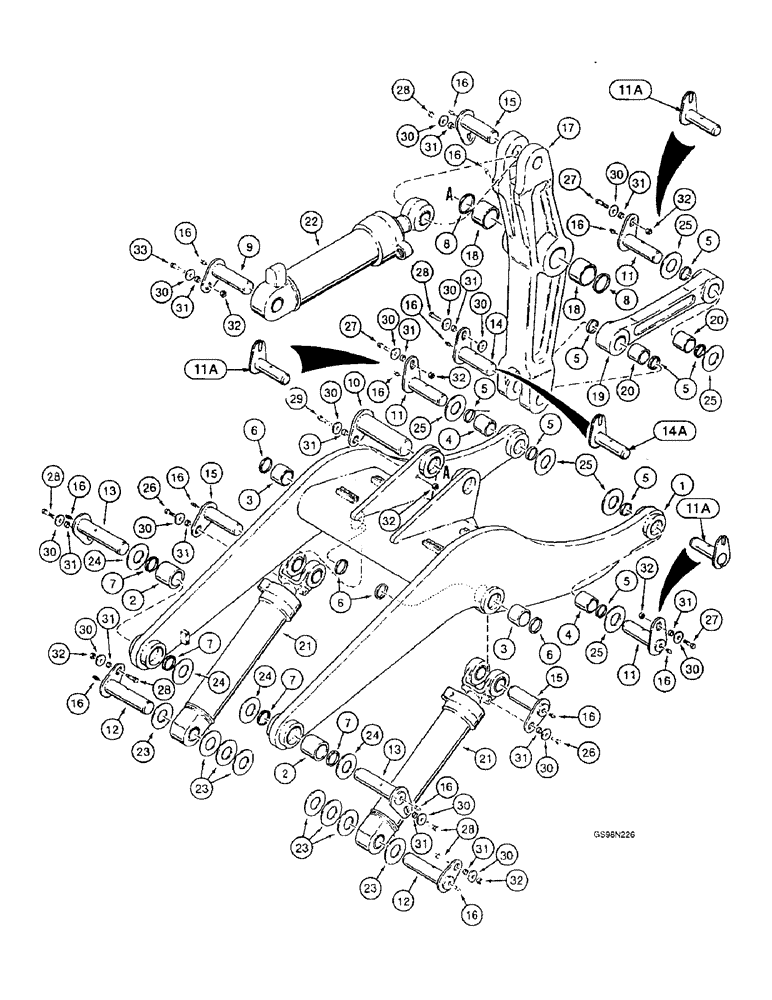

Запчасти Case 821B (9-006) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

231695A1

ROCKER ARM

FRAME ASSEMBLY - loader lift, replaces 107022A1 frame assembly, includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

2

L125973

BUSHING,95.41mm ID x 111.25mm OD x 106.5mm L

- loader lift frame, at chassis

2шт.

3

L125974

BUSHING,82.72mm ID x 95.38mm OD x 78mm L

- loader lift frame, at lift cylinder

2шт.

4

L125972

BUSHING,76.38mm ID x 89.03mm OD x 90mm L

- loader lift frame, at bucket

2шт.

5

L128724

SEAL

- loader lift frame, at bucket and dump link

8шт.

6

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

- loader lift frame, at lift cylinder

4шт.

7

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

- loader lift frame, at chassis

4шт.

8

L125033

SEAL,107.95mm ID x 120.65mm OD x 7.92mm Thk

SEAL - bellcrank pivot

2шт.

9

L118674

PIVOT PIN

PIN - pivot, 255 mm long, bucket, Serial Range: cylinder-chassis

1шт.

10

L125016

PIN,107.8mm OD x 367mm L

- pivot, bellcrank

1шт.

11

L128351

PIVOT PIN

PIN - pivot, 249 mm long, loader lift frame and dump link to bucket, no longer used, order pin 22577A1, Ref. 11A

3шт.

11a

225775A1

PIVOT PIN

PIN - pivot

3шт.

12

L125019

PIN,82.39mm OD x 328mm L

- mounting, lift cylinder closed, Serial Range: end-chassis

2шт.

13

L125021

PIN,95.09mm OD x 328mm L

- mounting, loader lift, Serial Range: frame-chassis

2шт.

14

L128351

PIVOT PIN

PIN - pivot, 249 mm long, loader bucket bellcrank to bucket dump link, no longer used, use pin 225775A1, Ref. 14A

1шт.

14a

225775A1

PIVOT PIN

PIN - pivot

1шт.

15

L125176

PIN,82.39mm OD x 240mm L

- bucket cylinder to bellcrank and lift cylinder to loader lift frame

3шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

13шт.

L130049

LINKAGE YOKE

BELLCRANK ASSEMBLY - loader bucket, includes: Ref. 17 and 18

1шт.

Part of KIT, P/N 239937A1

1шт.

17

NSS

NOT SOLD SEPARAT

BELLCRANK - loader bucket

1шт.

18

L125971

BUSHING,108.12mm ID x 120.8mm OD x 82mm L

- bellcrank

2шт.

L128196

POWER ARM

LINK ASSEMBLY - bucket dump, includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

LINK - loader bucket dump

1шт.

20

L125957

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader bucket dump link

2шт.

21

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

CYLINDER ASSEMBLY - 152 (6) ID x 807 mm (31-3/4 inch) stroke, parts list Fig. 8-46

2шт.

22

1980385C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - 178 (7) ID x 579 mm (22-3/4 inch) stroke, parts list Fig. 8-48

1шт.

23

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

- flat, special, used as shim between loader lift cylinders and chassis

4-8шт.

24

L125051

WASHER

- flat, special, used as shim between loader lift frame and chassis

4шт.

25

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

6шт.

26

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

27

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

3шт.

28

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8

6шт.

29

426-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch, grade 8

1шт.

30

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

31

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- 14.3 mm (9/16 inch)

13шт.

32

131-219

LOCK NUT

NUT - hex, self-locking, 5/8 inch NC

7шт.

33

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

239937A1

SET OF PARTS

KIT - bellcrank ear repair

1шт.
