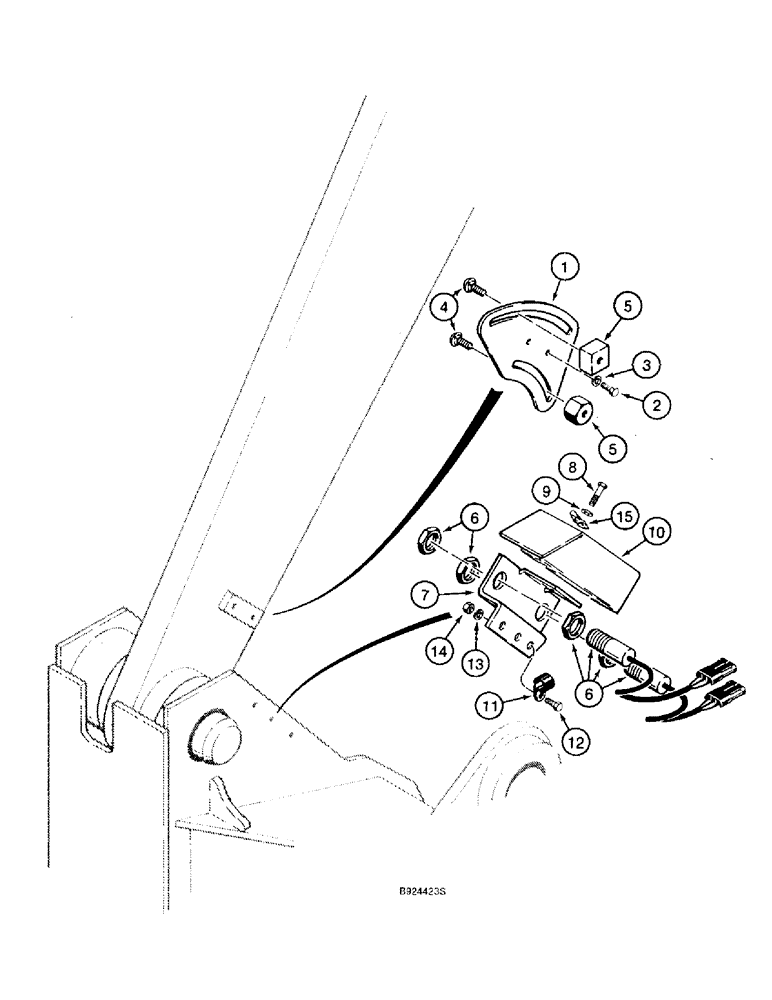

Запчасти Case 821B (9-004) - LOADER BUCKET HEIGHT CONTROL AND, RETURN-TO-TRANSPORT (09) - CHASSIS/ATTACHMENTS

1

L125256

LARGE PLATE

PLATE - mounting, proximity switches

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

5

L125976

SWITCH

ACTUATOR - switch, proximity

2шт.

6

1546498C1

SWITCH

- proximity, height control and return-to-transport

2шт.

7

L125982

SUPPORT

BRACKET - mounting, proximity switches

1шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

10

L125258

COVER

- proximity switches

1шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Front harness 9/16", Insul, 3/8" Bolt

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

2шт.
