Запчасти Case 821B (2-06) - FAN AND FAN BELTS (02) - ENGINE

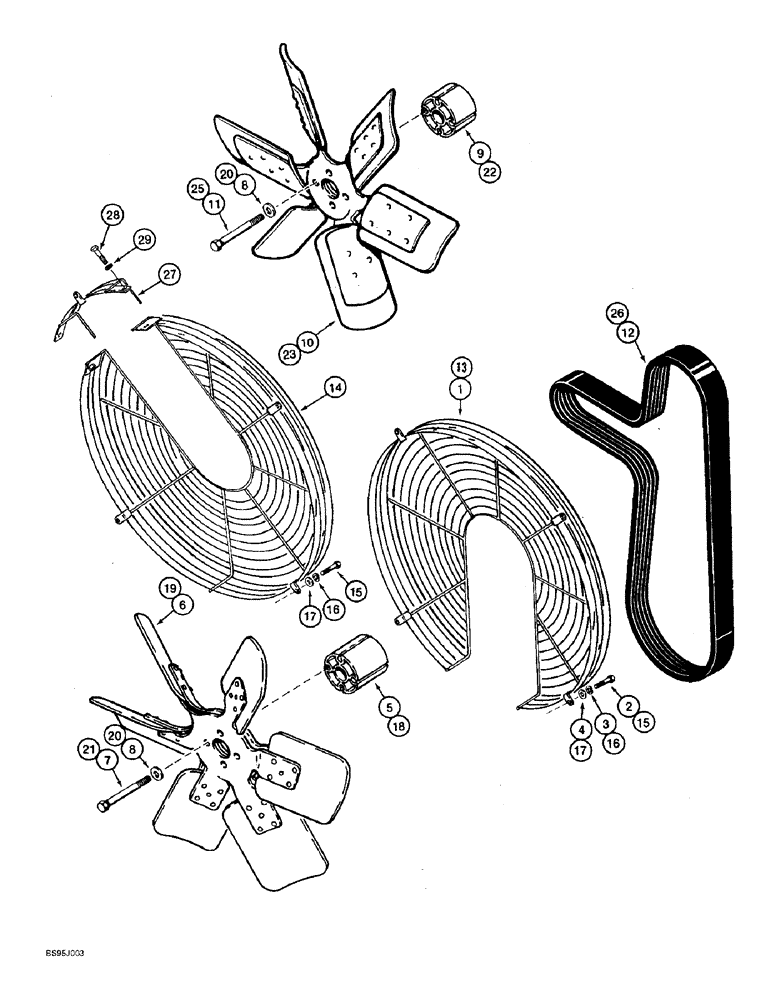

Схема запчастей Case 821B - (2-06) - FAN AND FAN BELTS (02) - ENGINE
11
13
18
12
17
8
8
16
2
25
15
5
16
20
15
9
26
7
20
14
3
23
1
17
4
22
27
6
29
28
19
10
21

Артикул

Название

Примечание

Количество

1

A189034

SIEVE

GUARD - fan

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

4шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16", Serial Range: -JEE0050601

4шт.

5

A184524

SPACER

- fan, 101704A1 pusher fan, Serial Range: -JEE0050601

1шт.

6

101704A1

FAN,6 Blades, 653.2mm OD

- pusher, Serial Range: -JEE0050601

1шт.

7

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 - 1.5 x 110 mm, 101704A1 Pusher fan, Serial Range: -JEE0050601

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Serial Range: -JEE0050601

4шт.

9

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long, A173576 suction fan, Serial Range: -JEE0050601

1шт.

10

A173576

VENTILATOR

FAN - suction, if used, Serial Range: -JEE0050601

1шт.

11

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, 10 - 1.5 x 120 mm, A184548 spacer and A173576 suction fan, if used, Serial Range: -JEE0050601

4шт.

12

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan 3.56 mm W x 1701.80 mm L, 8 Ribs, Serial Range: -JEE0050601

1шт.

13

198819A1

GUARD

- fan, models without air conditioning, Start Serial: JEE0050601

1шт.

14

198820A1

GUARD

- fan, models with air conditioning, Start Serial: JEE0050601

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9, Start Serial: JEE0050601

4шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8, Start Serial: JEE0050601

4шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16", Start Serial: JEE0050601

4шт.

18

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long, Start Serial: JEE0050601

1шт.

19

101704A1

FAN,6 Blades, 653.2mm OD

- pusher, if used, Start Serial: JEE0050601

1шт.

20

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, 10 - 1.5 x 120 mm, Start Serial: JEE0050601

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Start Serial: JEE0050601

4шт.

22

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long, Start Serial: JEE0050601

1шт.

23

A173576

VENTILATOR

FAN - suction, if used, Start Serial: JEE0050601

1шт.

25

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, 10 - 1.5 x 120 mm, Start Serial: JEE0050601

4шт.

26

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan 3.56 mm W x 1701.80 mm L, 8 Ribs, Start Serial: JEE0050601

1шт.

26

J911580

V-BELT,27.92mm W x 1739.90mm L, 8 Ribs

Fan, If Used 3.56 mm W x 1739.90 mm L, 8 Ribs

1шт.

27

198821A2

HOLDER

BRACKET - fan guard, models with air conditioning, Start Serial: JEE0050601

1шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9, Start Serial: JEE0050601

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8, Start Serial: JEE0050601

2шт.

Выбрано товаров: 29
