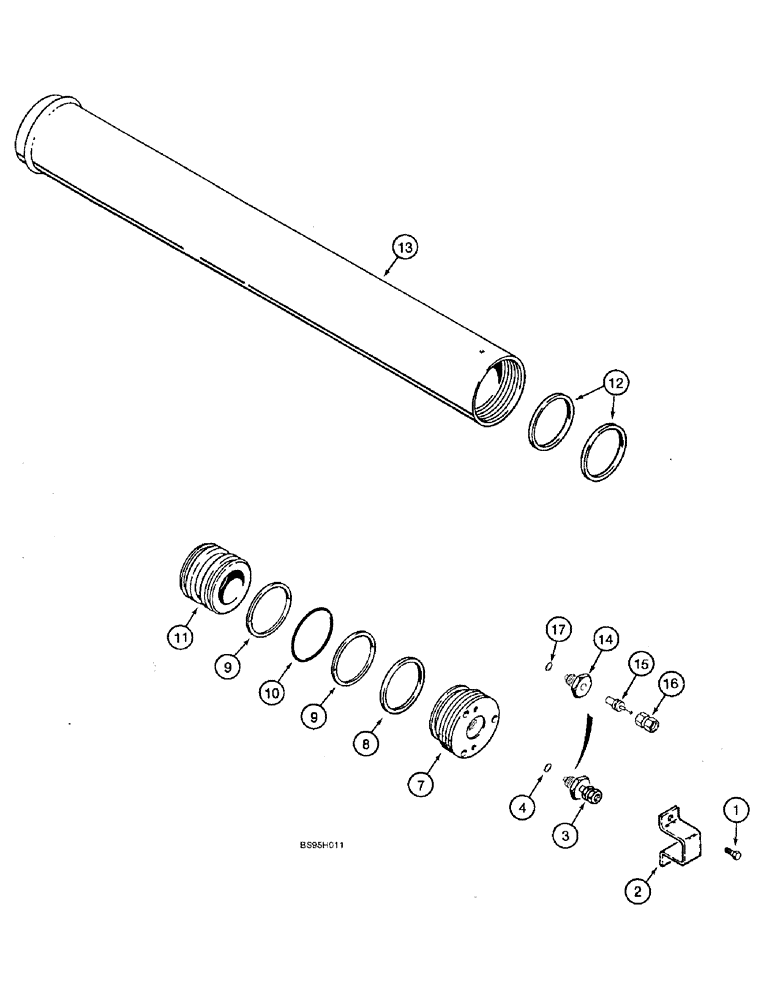

Запчасти Case 821B (8-94) - ACCUMULATOR ASSEMBLY, RIDE CONTROL (08) - HYDRAULICS

130354A1

ACCUMULATOR

ASSEMBLY - ride control, 4 inch diameter, see Fig. 8-74 for mounting, includes: Ref. 1 - 17

1шт.

1

S301367

SCREW

- special, bracket

2шт.

2

1341920C1

PROTECTOR

GUARD - valve, replaces S301366 guard

1шт.

3

179066A1

VALVE

- gas, no longer available, order 192900A1, Refs. 14 - 17, includes: Ref. 4

1шт.

4

1978158C1

O-RING

- valve

1шт.

Part of Seal Kit, P/N 1341919C1

1шт.

7

179065A1

CAP

GLAND - accumulator, includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

Part of Seal Kit, P/N 1341919C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Seal Kit, P/N 1341919C1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit, P/N 1341919C1

1шт.

11

S301364

PISTON

- accumulator

1шт.

12

S301365

RING

- wear, teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.

192900A1

VALVE

ASSEMBLY - accumulator charging, includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging

1шт.

15

1978143C1

PISTON

CORE - valve

1шт.

16

1978144C1

CAP

- valve

1шт.

17

1978158C1

O-RING

- valve

1шт.

Part of Seal Kit, P/N 1341919C1

1шт.

1341919C1

SEAL KIT

KIT - seal, includes Ref. 4, 8, 9, 10 and 17

1шт.
