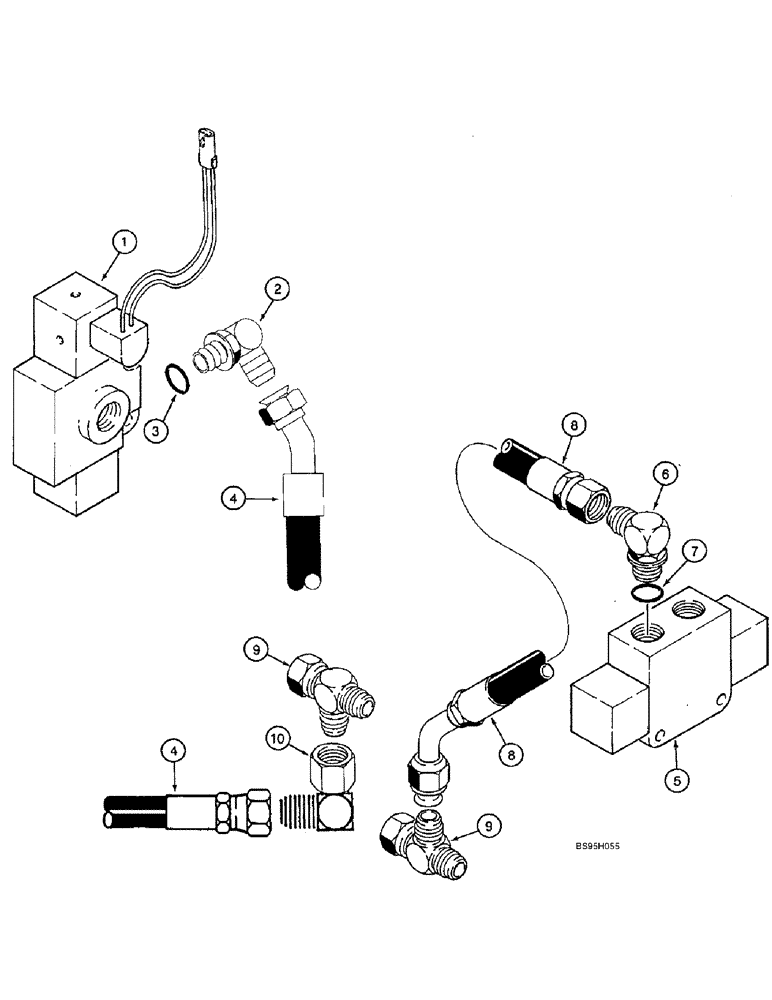

Запчасти Case 821B (8-88) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER AND DIRECTIONAL VALVES TO LIFT TUBES (08) - HYDRAULICS

1

107866A1

VALVE

ASSEMBLY - master directional, with electrical connector, parts list Fig. 8-90

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

131200A1

HOSE ASSY.

HOSE - 365 mm (14-3/8 inch) long, to right-hand rod end cylinder tube

1шт.

See Figure 8-12 for lift tubes used on models with ride control.

1шт.

5

106488A1

VALVE

ASSEMBLY - directional control, parts list Fig. 8-92

2шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch directional valve, Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

131199A1

HOSE ASSY.

HOSE - 510 mm (20 inch) long, closed end cylinder tube

1шт.

See Figure 8-12 for lift tubes used on models with ride control.

1шт.

9

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x swivel

2шт.

See Figure 8-12 for lift tubes used on models with ride control.

1шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.
