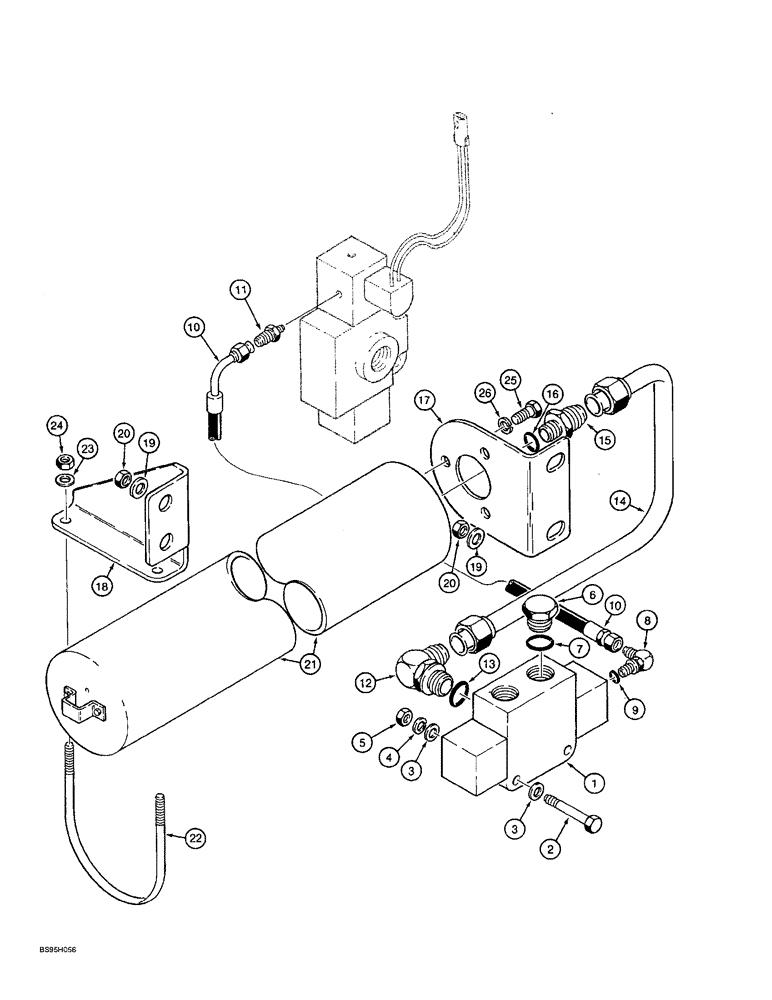

Запчасти Case 821B (8-86) - RIDE CONTROL HYDRAULIC CIRCUIT, DIRECTIONAL VALVE TO MASTER VALVE & ACCUMULATOR (08) - HYDRAULICS

1

106488A1

VALVE

ASSEMBLY - directional control, parts list Fig. 8-92

1шт.

2

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

50-3561T1

FITTING

ELBOW - 90 degree, 9/16-18 flare x 7/16-20 inch O-ring boss, forged, includes: Ref. 9

1шт.

9

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

10

131235A1

HOSE ASSY.

HOSE - 830 mm (32-5/8 inch) long, directional valve to master directional valve

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

131204A1

TUBE,19.04 mm OD, 284, 204 mm Length

- directional valve to accumulator

1шт.

15

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss, includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

17

130133A1

SUPPORT

BRACKET - mounting, accumulator, front

1шт.

18

130134A1

SUPPORT

BRACKET - mounting, accumulator, rear

1шт.

19

187563A1

SPACER

- 13 x 25 x 28 mm

4шт.

20

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

21

130354A1

ACCUMULATOR

ASSEMBLY - ride control, parts list Fig. 8-94

1шт.

22

L128472

U-BOLT

- special, accumulator mounting

1шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

24

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

25

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

3шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.
