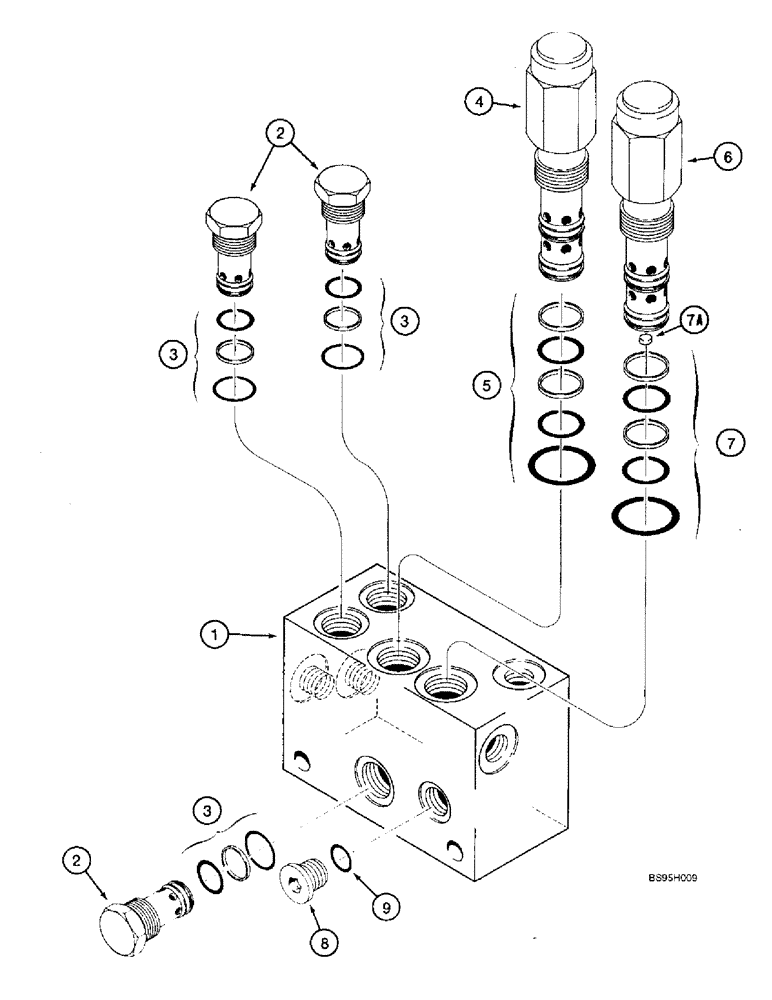

Запчасти Case 821B (8-82) - PRESSURE REDUCING VALVE - 108525A1 (08) - HYDRAULICS

108525A1

VALVE

ASSEMBLY - pressure reducing, includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

120459A1

VALVE,3/4" - 16

ASSEMBLY - check, includes: Ref. 2 and 3

3шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - check valve

1шт.

3

1542831C1

SEAL KIT

KIT - seal, valve, includes (2) O-rings and (1) backup ring which are not serviced separately, replaces 120462A1 kit

1шт.

120466A1

VALVE

ASSEMBLY - sequence, includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

CARTRIDGE - sequence valve

1шт.

5

120469A1

SEAL KIT

KIT - seal

1шт.

120470A2

VALVE

ASSEMBLY - relief, includes: Ref. 6 - 7A

1шт.

6

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve

1шт.

7

120469A1

SEAL KIT

KIT - seal

1шт.

7a

294787A1

JET

PLUG - orifice

1шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 9 Hex Soc, 7/16"-20 ORB

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

294787A1

JET

PLUG - orifice, not shown

1шт.
