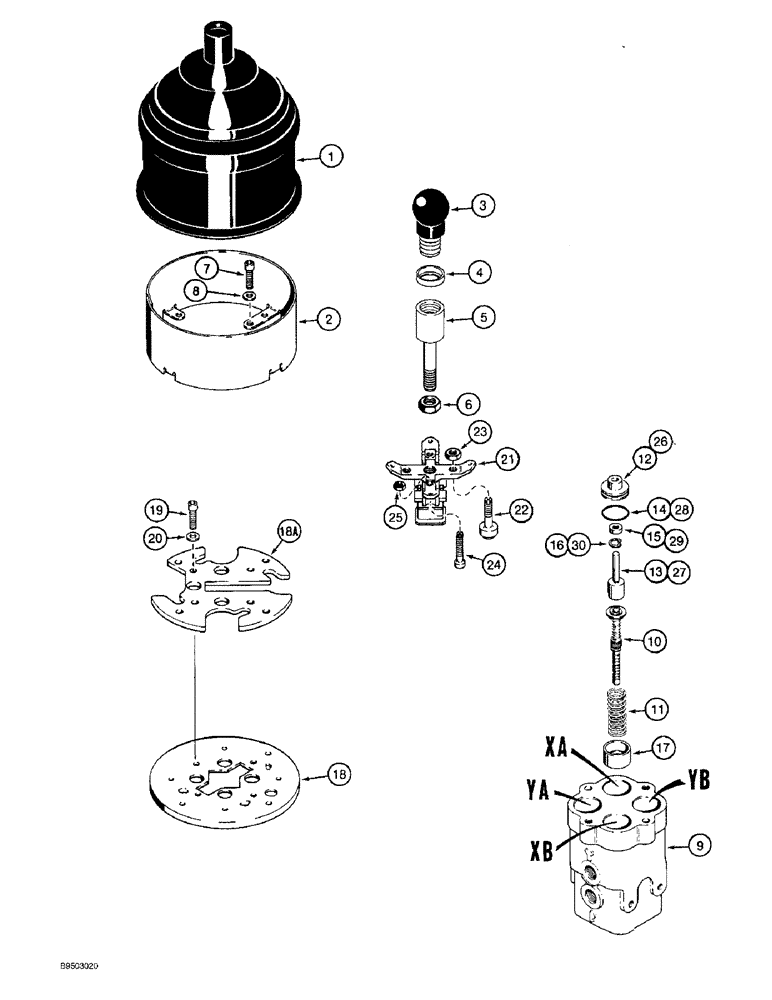

Запчасти Case 821B (8-80) - AUXILIARY REMOTE CONTROL VALVE - 117919A1 (08) - HYDRAULICS

117919A1

VALVE

ASSEMBLY - control, single lever remote, includes: Ref. 1 - 30

1шт.

1

120519A1

BOOT

- dust

1шт.

2

120533A1

CLAMP

COLLAR - control valve

1шт.

3

120712A1

KNOB

- control lever

1шт.

4

120560A1

WASHER

WASHER - boot

1шт.

5

120521A1

LEVER

- control

1шт.

6

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

7

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

2шт.

8

1978189C1

WASHER

- flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

120702A1

VALVE

ASSEMBLY - remote control, includes: Ref. 9 - 30

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

10

1971884C1

SPOOL

ASSEMBLY - remote control valve, valve ports XA, XB, YA, and YB

4шт.

11

1978191C1

SPRING

- spool, valve ports XA, XB, YA, and YB

4шт.

109753A1

PLUNGER

ASSEMBLY - control valve, valve ports XA, XB, and YA, includes: Ref. 12 - 16

3шт.

12

1978195C1

GUIDE

- valve, 1/2 inch long

1шт.

13

109765A1

PLUNGER

- valve, 1 inch long stem

1шт.

14

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

15

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- U-cup, plunger

1шт.

16

100-2150

SNAP RING,0.50", Int, #50

Ring, Snap, , Plunger 0.50", Int, #50

1шт.

17

1978192C1

RACE

SLEEVE - spool

4шт.

18

1978196C1

LARGE PLATE

PLATE - plastic, lower

1шт.

18a

1978197C1

LARGE PLATE

PLATE - metal, upper

1шт.

19

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

2шт.

20

1978189C1

WASHER

- flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

120703A1

BRACKET

ASSEMBLY - control valve, includes: Ref. 21 - 25

1шт.

21

1978199C1

CAM

PIVOT - bracket

1шт.

22

1978203C1

SCREW

ACTUATOR - spool, large

2шт.

23

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2шт.

24

1978204C1

SCREW

ACTUATOR - spool, small

2шт.

25

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

2шт.

1971896C1

PLUNGER

ASSEMBLY - control valve, includes: Ref. 26 - 30

1шт.

26

1978193C1

GUIDE

- valve, 5/8 inch long

1шт.

27

109765A1

PLUNGER

- valve, 1 inch long stem

1шт.

28

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

29

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- U-cup, plunger

1шт.

30

100-2150

SNAP RING,0.50", Int, #50

Ring, Snap, , Plunger 0.50", Int, #50

1шт.
