Запчасти Case 821B (8-62) - REMOTE LOADER CONTROL CIRCUIT, HOSE SEPARATOR TO THREE SPOOL VALVE (08) - HYDRAULICS

1

L126101

VALVE

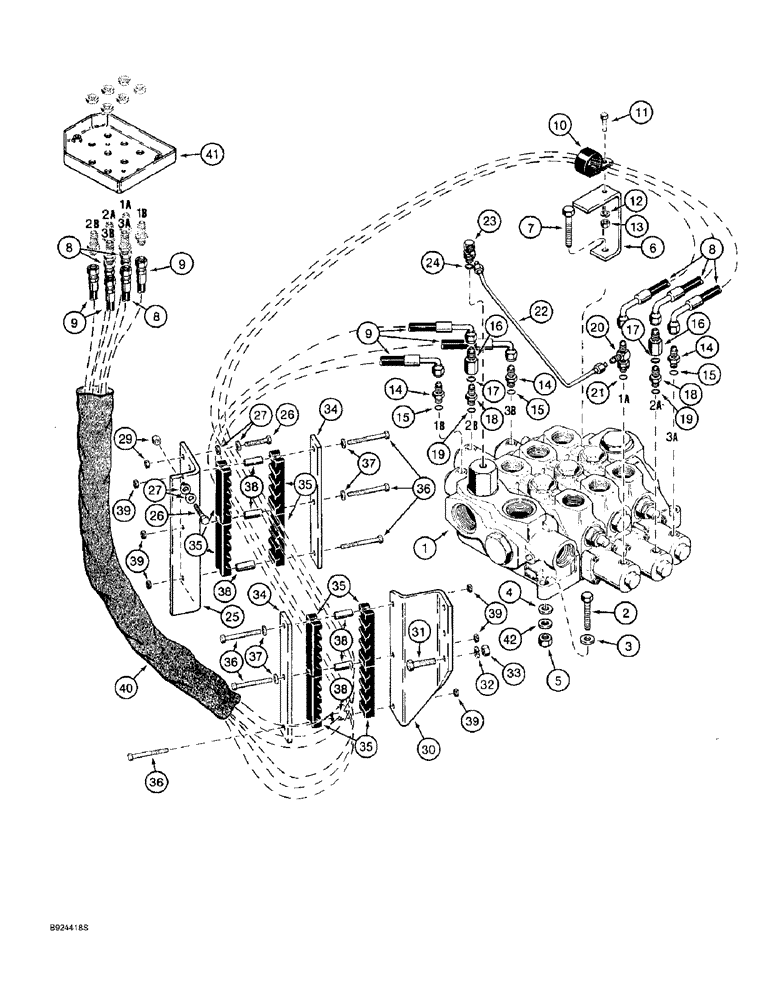

ASSEMBLY - control, three spool, parts list Fig. 8-24

1шт.

2

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

3

187563A1

SPACER

- 13 x 25 x 28 mm

2шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

5

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

6

L125891

SUPPORT

- hose

1шт.

7

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

8

L125336

HOSE

- 2525 mm (99-1/2 inch) long, hose separator to ports 1A, 2A and 3A

3шт.

9

L125335

HOSE

- 2025 mm (70-3/34 inch) long, hose separator to ports 1B, 2B and 3B

3шт.

10

R13931

CLAMP

- P-type, ports 1A, 2A and 3A

1шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, at port 1B, 3A, and 3B, Incl. Ref. 15

3шт.

L110143

VALVE

- check, includes: Ref. 16 - 19

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 19

1шт.

20

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, includes: Ref. 21

1шт.

22

L125551

PIPE,9.52 mm OD

TUBE - inlet and outlet section to tee at port 1A

1шт.

23

L129652

FITTING

ELBOW - 90 degree, special, includes: Ref. 24

1шт.

25

114654A1

BRACKET

- mounting, left-hand

1шт.

26

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

27

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

29

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

30

L125332

SUPPORT

BRACKET - mounting, right-hand

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

34

L127357

LARGE PLATE

PLATE - mounting, bracket

2шт.

35

L124271

FIXING BRACKET

CLAMP - rubber, hose retaining

8шт.

36

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8

6шт.

37

D41740

WASHER

- flat, special, 3/8 inch

4шт.

38

L126936

SPACER

- 34 mm long, hose clamp

6шт.

39

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

6шт.

40

S120426

TUBE

GUARD - hose protector

1-2шт.

41

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

41a

137716A2

LARGE PLATE

SEPARATOR - hose, loader control, if used, not shown, see Figs. 8-58 or 8-60

1шт.

42

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
