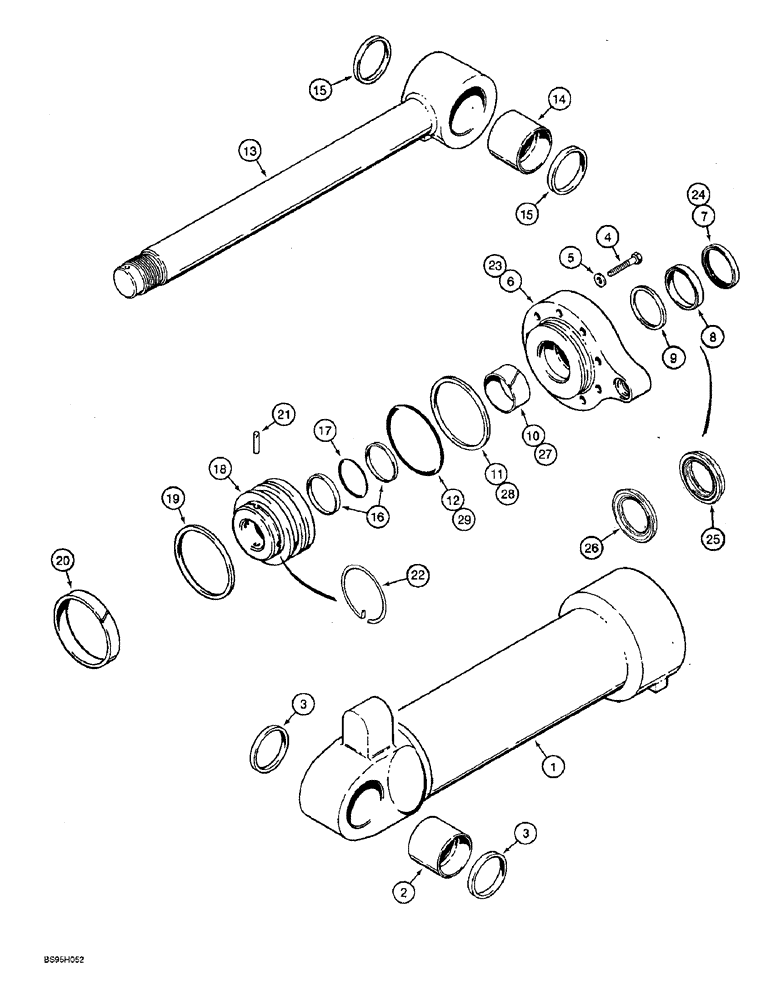

Запчасти Case 821B (8-48) - BUCKET CYLINDER (08) - HYDRAULICS

1980385C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - 178 (7) ID x 579 mm (22-3/4 inch) stroke, bucket

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1343663C1

JACK BODY

TUBE - cylinder

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

9шт.

5

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special, hardened

9шт.

1343666C1

BEARING

GLAND ASSEMBLY - cylinder, no longer available, order Ref. 23, 1343667C1, gland and 1543309C1 seal repair kit, includes: Ref. 6 - 12

1шт.

For identification purposes, Ref. 23, 1343667C1 gland has a groove on the outside rim around the wiper. 1343666C1 gland assembly does not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

S92653

WIPER

- piston rod, no longer available, order S97854 wiper, Ref. 24

1шт.

8

G109055

SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

9

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- buffer

1шт.

10

G110677

HYD CYL SLEEVE

BUSHING, Serial Range: --rod

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

- backup, gland O-ring

1шт.

12

G110678

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- gland seal

1шт.

13

1980386C2

PISTON ROD

ROD - piston, 89 mm (3-1/2 inch) diameter, includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- rod eye

1шт.

15

L104363

WIPER SEAL

- rpd eye

2шт.

16

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

2шт.

Part of KIT, P/N 1543309C1

1шт.

17

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of KIT, P/N 1543309C1

1шт.

18

1980389C2

JACK PISTON

PISTON - rod

1шт.

19

S110158

SEAL

- piston

1шт.

Part of KIT, P/N 1543309C1

1шт.

20

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

Part of KIT, P/N 1543309C1

1шт.

21

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

22

1980390C1

RING, SNAP

RING - retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, if used, includes: Ref. 23 - 26

1шт.

For identification purposes, Ref. 23, 1343667C1 gland has a groove on the outside rim around the wiper. 1343666C1 gland assembly does not have a groove.

1шт.

23

1343667C1

GLAND

- cylinder, uses refs. 25 and 26

1шт.

For identification purposes, Ref. 23, 1343667C1 gland has a groove on the outside rim around the wiper. 1343666C1 gland assembly does not have a groove.

1шт.

24

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of KIT, P/N 1543309C1

1шт.

1542882C1

STRIPPER PACKAGE

KIT - seal, NSS, order 1543309C1 seal kit, includes: Ref. 25 and 26

1шт.

Part of KIT, P/N 1543309C1

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rod, NSS, order 1543309C1 seal kit

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - buffer, NSS, order 1543309C1 seal kit

1шт.

27

G110677

HYD CYL SLEEVE

BUSHING -, Serial Range: gland-rod

1шт.

Part of KIT, P/N 1543309C1

1шт.

28

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

- backup, gland O-ring

1шт.

Part of KIT, P/N 1543309C1

1шт.

29

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

Part of KIT, P/N 1543309C1

1шт.

1543309C1

SEAL KIT

KIT seal, includes Refs. 16, 17, 19, 20, 24, P/N 1542882C1, 27-29 and an instruction sheet, used with 1343667C1 gland.

1шт.
