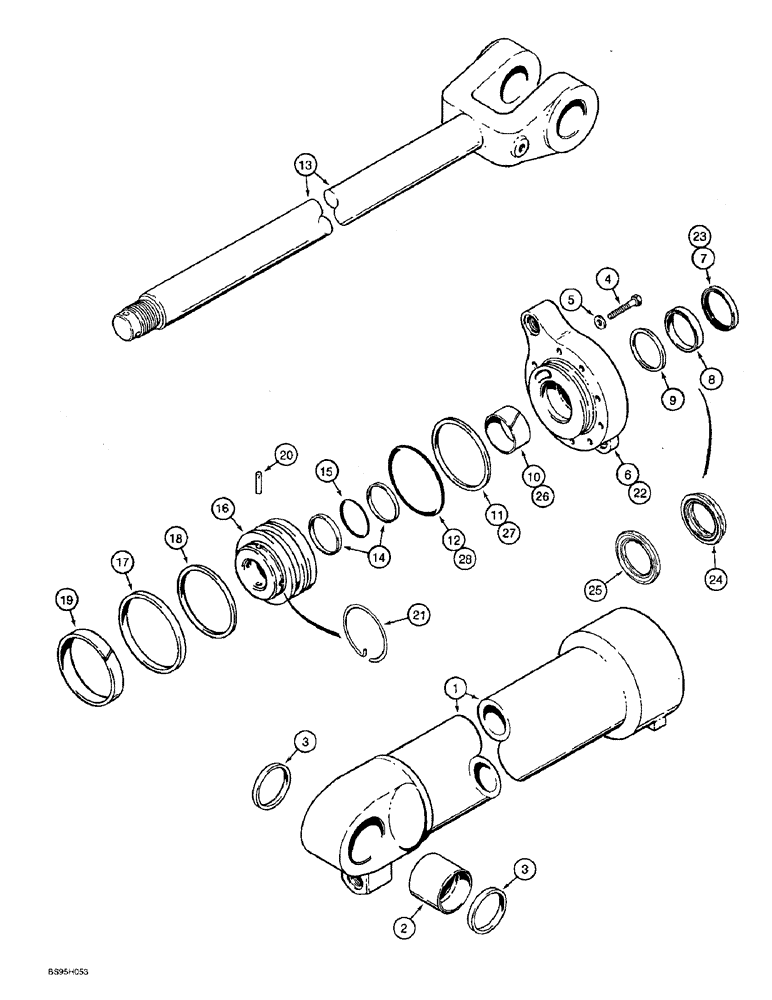

Запчасти Case 821B (8-46) - LIFT CYLINDERS (08) - HYDRAULICS

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

CYLINDER ASSEMBLY - 152 (6) ID x 807 mm (31-3/4 inch) stroke, lift, includes: Ref. 1 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1343590C1

JACK BODY

TUBE - cylinder, includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

5

G110688

WASHER

- flat, 16 x 25 x 2.54 mm, hardened

9шт.

1986820C1

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 22, 1986602C1 gland and 1986823C2 seal repair kit, includes: Ref. 6 - 12

1шт.

For identification purposes, Ref. 22, 1986602C1 gland has a groove on the outside rim around the wiper. 1986820C1 gland assembly does not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

S92653

WIPER

- piston rod, no longer available, order S97854 wiper, Ref. 23

1шт.

8

G109055

SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

9

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- buffer

1шт.

10

G110677

HYD CYL SLEEVE

BUSHING -

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

12

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

End cover -356, 70 Duro, 5.35" ID x .210" Thk

1шт.

13

1986630C1

PISTON ROD

ROD - piston, 90 mm (3-1/2 inch) diameter

1шт.

14

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

2шт.

Part of KIT, P/N 1986823C2

1шт.

15

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of KIT, P/N 1986823C2

1шт.

16

1986633C1

JACK PISTON

PISTON - rod

1шт.

17

G110330

SEALING RING

SEALRING -, Serial Range: piston-tube

1шт.

Part of KIT, P/N 1986823C2

1шт.

18

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING - Backup, Piston seal

1шт.

Part of KIT, P/N 1986823C2

1шт.

19

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

Part of KIT, P/N 1986823C2

1шт.

20

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

21

1980390C1

RING, SNAP

RING - retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY- cylinder, if used, includes: Ref. 22 - 28

1шт.

For identification purposes, Ref. 22, 1986602C1 gland has a groove on the outside rim around the wiper. 1986820C1 gland assembly does not have a groove.

1шт.

22

1986602C1

GLAND

- cylinder, uses Refs. 24 and 25

1шт.

For identification purposes, Ref. 22, 1986602C1 gland has a groove on the outside rim around the wiper. 1986820C1 gland assembly does not have a groove.

1шт.

23

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of KIT, P/N 1986823C2

1шт.

1542882C1

STRIPPER PACKAGE

KIT - seal, NSS, order 1986823C2 seal kit, includes: Ref. 24 and 25

1шт.

Part of KIT, P/N 1986823C2

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rod, NSS, order 1986823C2 seal kit

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - buffer, order 1986823C2 seal kit

1шт.

26

G110677

HYD CYL SLEEVE

BUSHING -, Serial Range: gland-rod

1шт.

Part of KIT, P/N 1986823C2

1шт.

27

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

Part of KIT, P/N 1986823C2

1шт.

28

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

1шт.

Part of KIT, P/N 1986823C2

1шт.

1986823C2

SEAL KIT

KIT seal, includes Refs. 14, 15, 17-19, 23, P/N 1542882C1, and 26-28, and an instruction sheet, used with 19866602C1 gland.

1шт.
