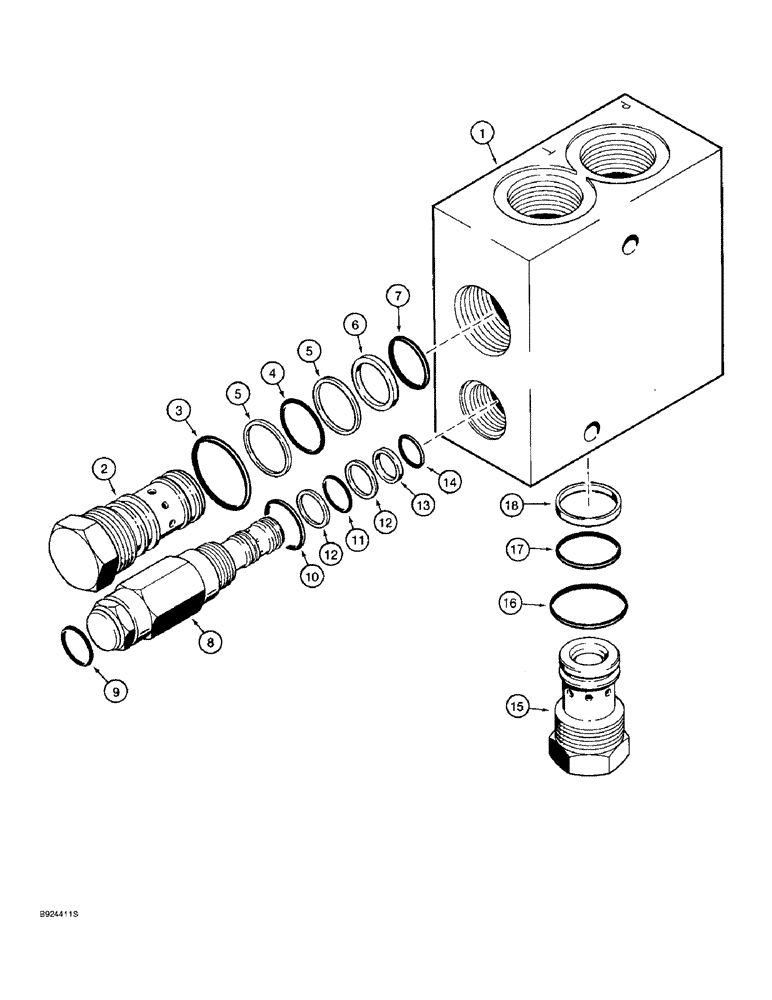

Запчасти Case 821B (8-42) - UNLOADING VALVE (08) - HYDRAULICS

191917A2

VALVE

ASSEMBLY - unloading, includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

110901A1

VALVE

- relief, individual components not serviced separately, includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

110902A1

SEAL KIT

KIT - seal, includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - medium

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, medium O-ring

2шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

110903A1

VALVE

- sequence, individual components not serviced separately, includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

110904A1

SEAL KIT

KIT - seal, includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - outer end

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - medium

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, medium O-ring

2шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

122410A1

VALVE, CHECK

VALVE - check, individual components not serviced separately, includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

124305A1

SEAL KIT

KIT - seal, includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.
