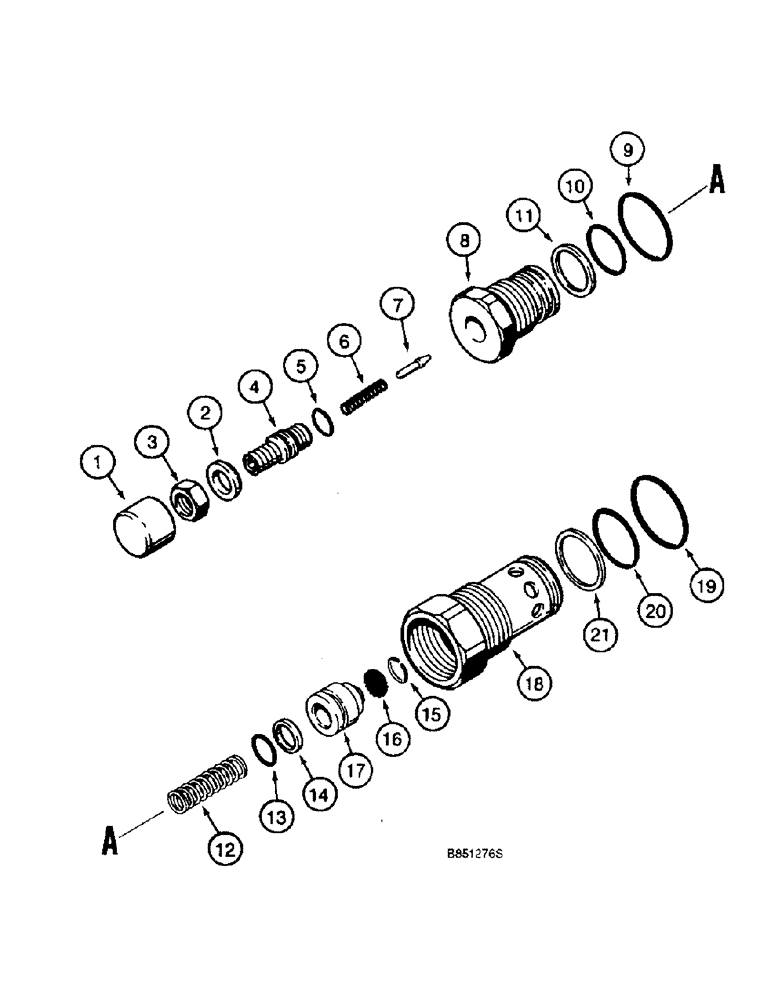

Запчасти Case 821B (8-40) - CIRCUIT RELIEF VALVE - N9469 (08) - HYDRAULICS

N9469

VALVE

ASSEMBLY - circuit relief, loader control valve, includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof

1шт.

2

N9475

WASHER

- special

1шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

4

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

N9465

SPRING

- plunger

1шт.

7

N9464

PLUNGER

POPPET - relief valve

1шт.

8

N9462

BODY

- pilot plunger

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

1шт.

11

A25298

RING

- backup, O-ring

1шт.

12

N9457

WASHER

SPRING - poppet

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, poppet O-ring

1шт.

15

N9473

RING, SNAP

RING - retaining, screen

1шт.

16

N9474

VALVE POPPET

SCREEN - poppet

1шт.

17

S300249

VALVE POPPET

POPPET - replaces N9466 poppet

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

20

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

21

N9459

BACK-UP RING

- backup, small O-ring

1шт.
