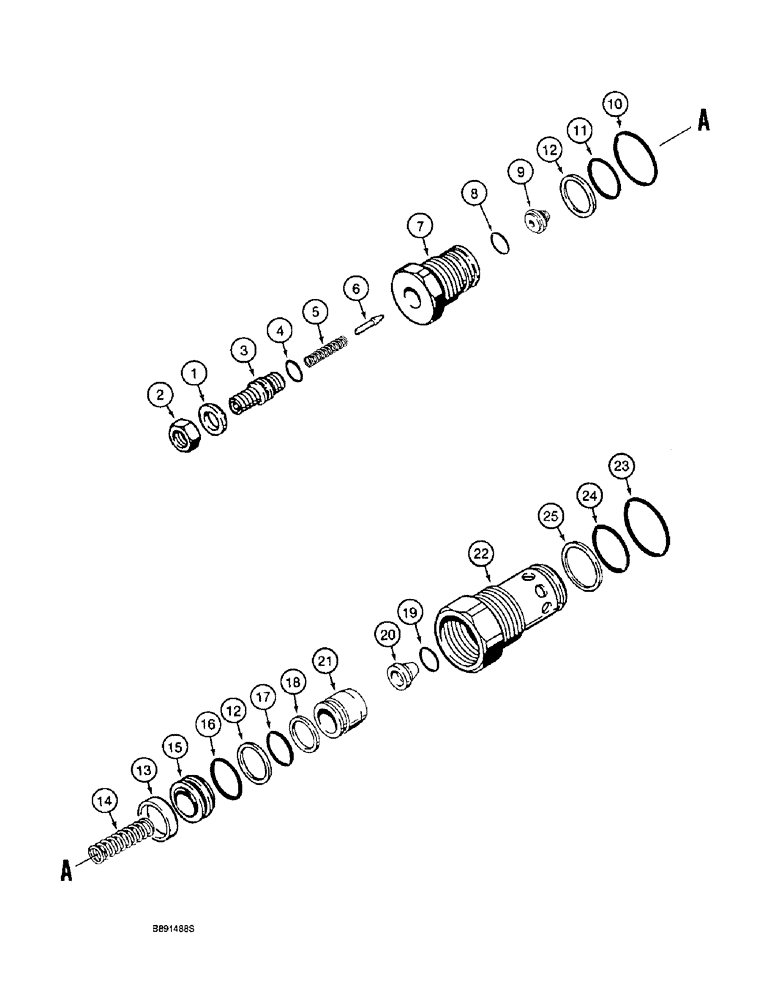

Запчасти Case 821B (8-36) - MAIN RELIEF VALVE - S300885 (08) - HYDRAULICS

S300885

VALVE

ASSEMBLY - main relief, loader, control valve, includes: Ref. 1 - 25

1шт.

1

N9475

WASHER

- special

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

3

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

Part of Seal Kit P/N S301665

1шт.

5

N9465

SPRING

- plunger

1шт.

6

N9464

PLUNGER

POPPET - relief valve

1шт.

S300893

PLUNGER ASSY.

BODY ASSEMBLY - pilot plunger, includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - pilot plunger

1шт.

8

S300900

O-RING,0.364" ID x 0.07" Width

- shaft

1шт.

Part of Seal Kit P/N S301665

1шт.

9

S300898

SPRING SEAT

SEAT - pilot

1шт.

10

S300908

WIPER SEAL

O-RING - plunger body, large

1шт.

Part of Seal Kit P/N S301665

1шт.

11

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

1шт.

Part of Seal Kit P/N S301665

1шт.

12

A25298

RING

- backup, O-ring

2шт.

Part of Seal Kit P/N S301665

1шт.

13

N9472

SPACER

- sleeve

1шт.

14

S300890

SPRING

- poppet

1шт.

15

N9461

SPACER

SLEEVE - poppet

1шт.

16

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

1шт.

Part of Seal Kit P/N S301665

1шт.

17

S300891

WIPER SEAL

O-RING - poppet

1шт.

Part of Seal Kit P/N S301665

1шт.

18

T40181

RING

- backup, poppet O-ring

1шт.

Part of Seal Kit P/N S301665

1шт.

S300910

RACE

POPPET ASSEMBLY - relief valve, includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - relief filter

1шт.

Part of Seal Kit P/N S301665

1шт.

20

S300897

FILTER

- relief

1шт.

21

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

Part of Seal Kit P/N S301665

1шт.

24

S300888

WIPER SEAL

1шт.

Part of Seal Kit P/N S301665

1шт.

25

S300889

GASKET

RING - backup, small O-ring

1шт.

Part of Seal Kit P/N S301665

1шт.

S301665

SEAL KIT

KIT - seal, includes Refs. 4, 8, 10, 11, 12, 16, 17, 18, 19, 23, 24, and 25

1шт.
