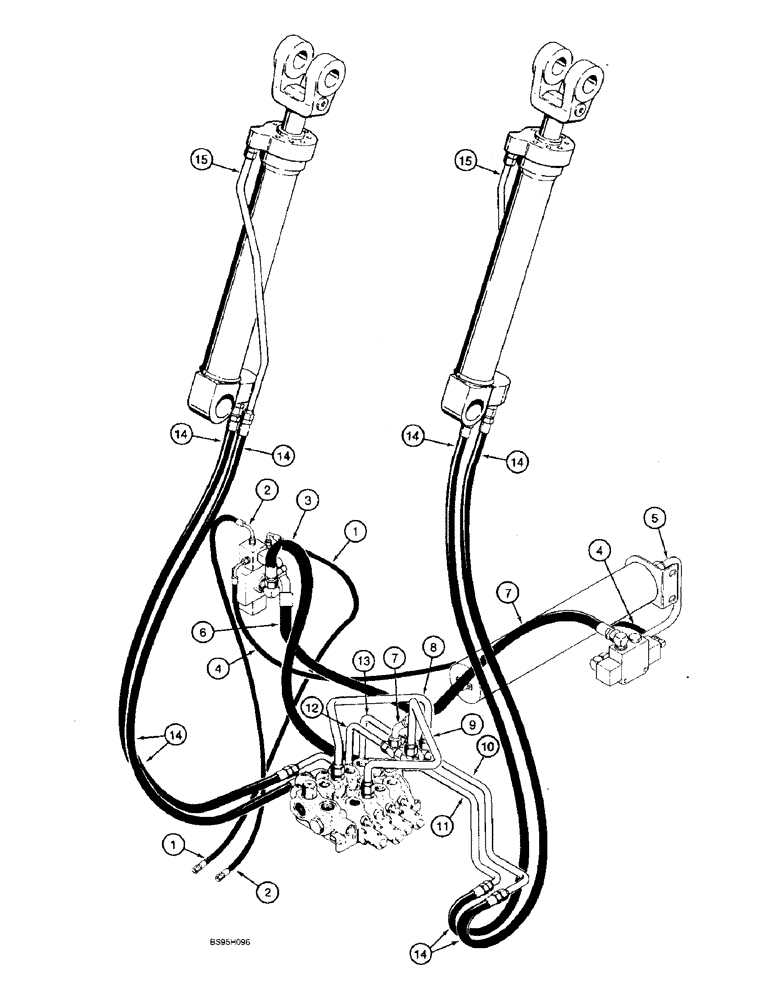

Запчасти Case 821B (1-26) - PICTORIAL INDEX, RIDE CONTROL HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, master directional valve to Pg. 8-85

1шт.

pilot controller and pressure

1шт.

reducing sequence valve

1шт.

2

Hose, master directional valve to Pg. 8-85

1шт.

hydraulic controller return line

1шт.

3

Hose, master directional valve to Pg. 8-85

1шт.

loader control valve end cover

1шт.

4

Hose, directional valve to master Pg. 8-87

1шт.

directional valve

1шт.

5

Tube, direction valve to Pg. 8-87

1шт.

accumulator

1шт.

6

Hose, master directional valve to Pg. 8-89

1шт.

right-hand rod end of cylinder tube

1шт.

7

Hose, directional valve to Pg. 8-89

1шт.

right-hand closed end of cylinder

1шт.

tube

1шт.

8

Tube, at loader control valve to Pg. 8-13

1шт.

closed end of cylinders

1шт.

9

Tube, at loader control valve to Pg. 8-13

1шт.

rod end of cylinders

1шт.

10

Tube, at tee to hose to right-hand Pg. 8-13

1шт.

lift cylinder closed end

1шт.

11

Tube, at tee to hose to right-hand Pg. 8-13

1шт.

lift cylinder rod end

1шт.

12

Tube, at tee to hose to left-hand Pg. 8-13

1шт.

lift cylinder rod end

1шт.

13

Tube, at tee to hose to left-hand Pg. 8-13

1шт.

lift cylinder closed end

1шт.

14

Hose, tubes to cylinder tubes Pg. 8-13

1шт.

15

Tube, hose to cylinder rod end Pg. 8-13

1шт.
