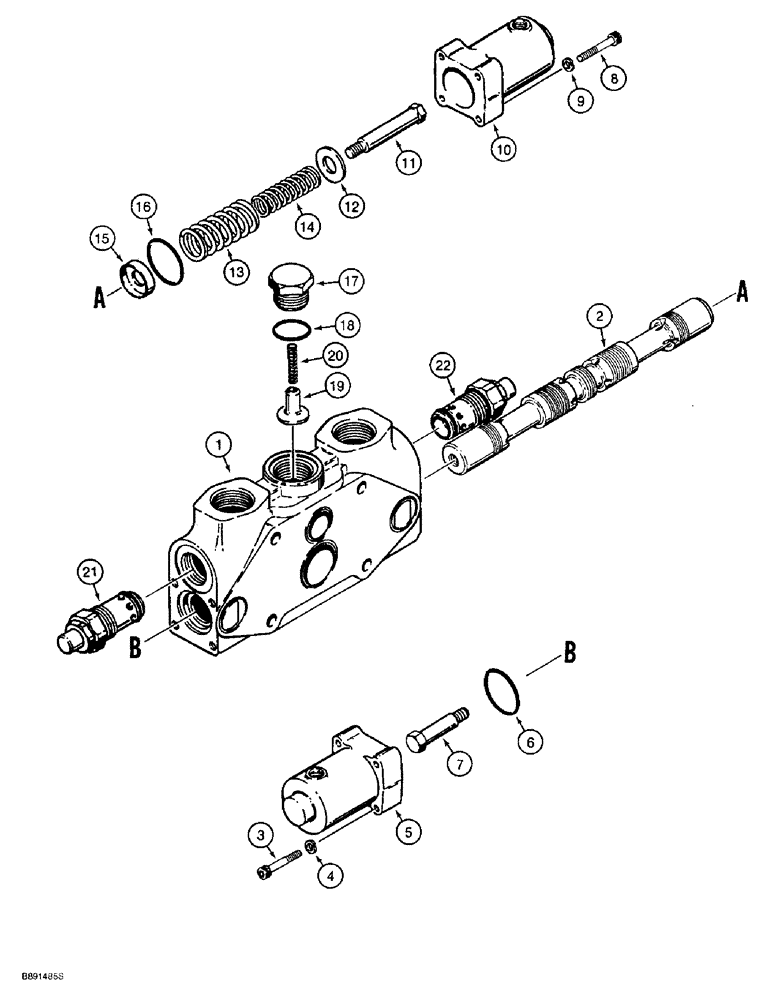

Запчасти Case 821B (8-30) - LOADER BUCKET TILT SECTION - S300880 (08) - HYDRAULICS

S300880

VALVE BLOCK

SECTION ASSEMBLY - bucket tilt, includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW, Hex Soc Hd, 1/4"-20 x 1 1/2"

4шт.

4

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

5

N9447

COVER

CAP - spring

1шт.

6

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

- 1-3/4 ID x 3/32 inch wide

1шт.

7

N9480

BOLT

- spool guide

1шт.

8

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW, Hex Soc Hd, 1/4"-20 x 1 1/2"

4шт.

9

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

10

N9447

COVER

CAP - spring

1шт.

11

N9480

BOLT

- spool positioner

1шт.

12

N9451

SPACER

- spring retainer

1шт.

13

N9481

SPRING

- spool positioner, large

1шт.

14

N9482

SPRING

- spool positioner, small

1шт.

15

N9483

SPACER

- spring

1шт.

16

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

- 1-3/4 ID x 3/32 inch wide, cap

1шт.

17

N9455

PLUG

- load check

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

N9456

PIN

POPPET - load check

1шт.

20

D28840

SPRING

- load check

1шт.

21

S300877

VALVE

ASSEMBLY - circuit relief and anticavitation, parts list Fig. 8-38

1шт.

22

N9469

VALVE

ASSEMBLY - circuit relief, parts list Fig. 8-40

1шт.
