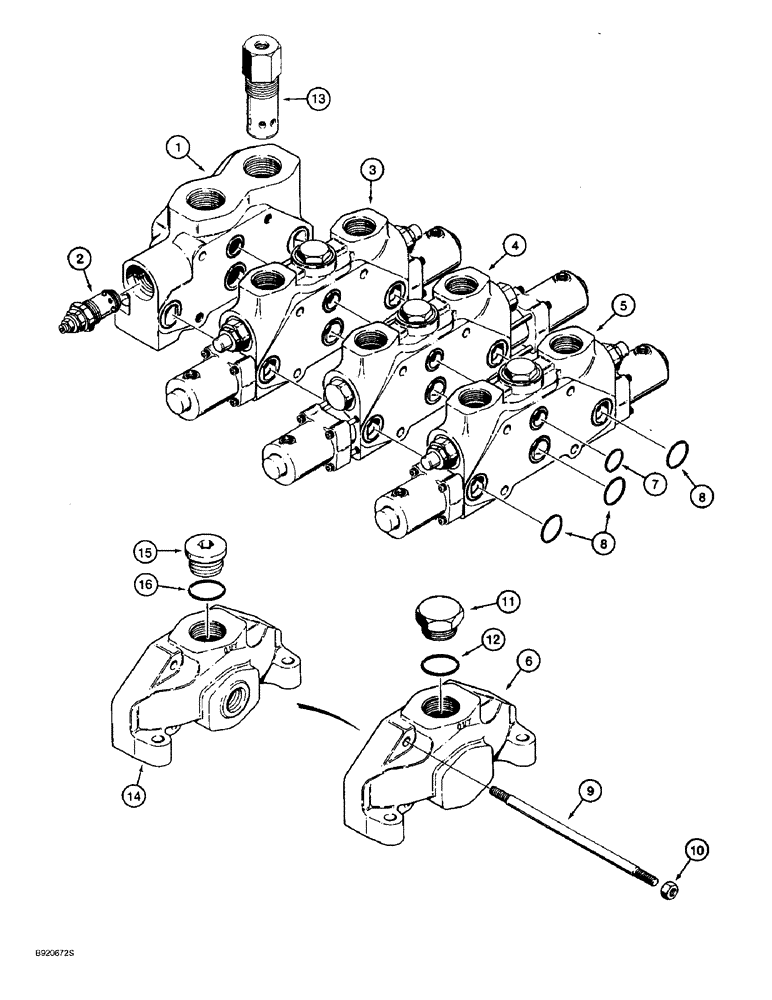

Запчасти Case 821B (8-24) - LOADER CONTROL VALVE - THREE SPOOL, POWER BEYOND KIT (08) - HYDRAULICS

L126101

VALVE

ASSEMBLY - control, three spool, includes: Ref. 1 - 13

1шт.

1

S300884

VALVE BLOCK

SECTION - end, inlet and outlet

1шт.

2

S300885

VALVE

ASSEMBLY - main relief, parts list Fig. 8-36

1шт.

3

S300880

VALVE BLOCK

SECTION ASSEMBLY - bucket, parts list Fig. 8-30

1шт.

4

S300881

VALVE BLOCK

SECTION ASSEMBLY - lift, parts list Fig. 8-28

1шт.

5

S300871

VALVE

SECTION ASSEMBLY - auxiliary, parts list Fig. 8-32

1шт.

6

N9484

COVER

PLATE - end cover

1шт.

7

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

Between sections -124, 90 Duro, 1.237" ID x .103" Thk

4шт.

8

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

Between sections -128, 90 Duro, 1.487" ID x .103" Thk

12шт.

9

N9247

STUD

BOLT - tie, special, no longer used, order stud S300874, Ref. 9A below

4шт.

9a

S300874

STUD

- 1/2 inch diameter

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

- hex, 1-7/8-12 inch O-ring boss, includes: Ref. 12

1шт.

12

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

13

S300886

VALVE

ASSEMBLY - low pressure, parts list Fig. 8-34

1шт.

L36349

KIT

- power beyond, if used, includes instructions, includes: Ref. 14 - 16

1шт.

14

S301816

COVER

- outlet

1шт.

15

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 16

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.
