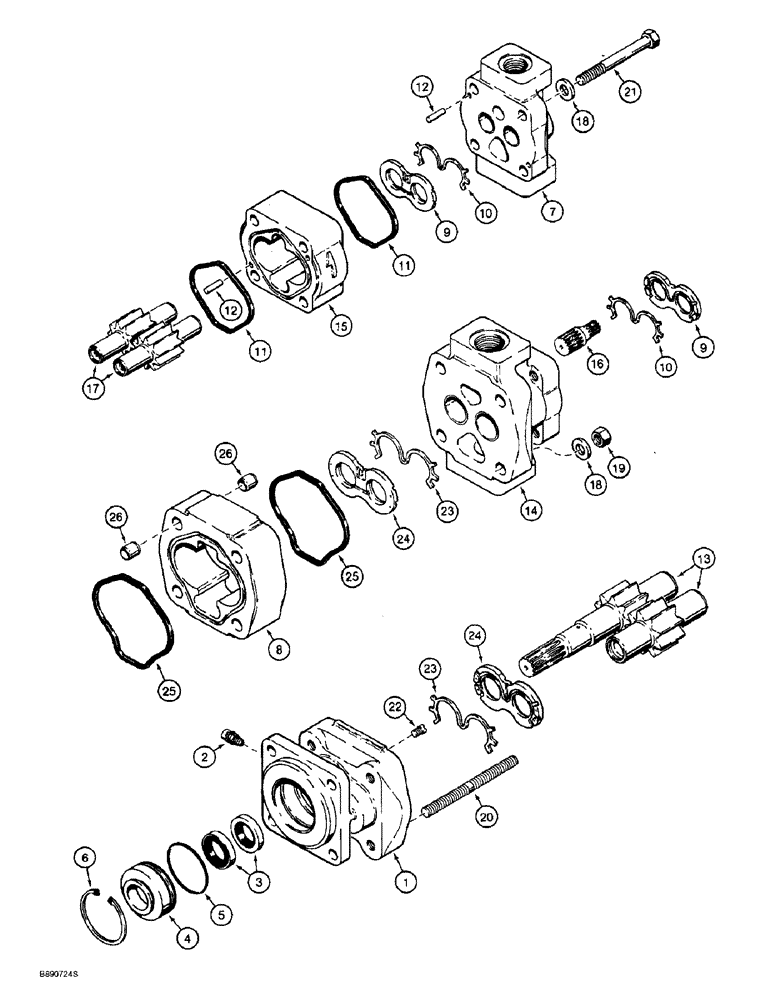

Запчасти Case 821B (8-20) - EQUIPMENT AND STEERING PUMP - L126103 (08) - HYDRAULICS

L126103

PUMP, HYDRAULIC,5.4 CC

PUMP ASSEMBLY - equipment and steering, includes: Ref. 1 - 27

1шт.

L126103R

REMAN-HYD PUMP

821B

1шт.

L126103C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300592

COVER

- shaft end

1шт.

2

1978259C1

VALVE POPPET

VENT - air

1шт.

3

S300419

SEAL,34.92mm ID x 54.08mm OD x 7.92mm Thk

SEAL - lip, shaft

2шт.

4

1978254C1

SEAL RETAINER

RETAINER - seal

1шт.

5

S300727

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

- viton

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

1шт.

7

S300594

COVER

- port end

1шт.

8

S300721

HOUSING

- gear, shaft end

1шт.

9

N13582

THRUST PLATE

PLATE, THRUST

2шт.

10

N13583

SEAL

- gear housing

2шт.

11

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing

2шт.

12

W16323

DOWEL

PIN - dowel, gear housing

4шт.

13

S300722

GEAR-SET

GEAR - set, shaft end

1шт.

14

S300593

BODY

CARRIER - bearing

1шт.

15

N13581

HOUSING

- gear, shaft end, closed end

1шт.

16

S300725

DRIVE SHAFT

SHAFT - connecting

1шт.

17

S300726

GEAR-SET

GEAR - set, closed end

1шт.

18

19-488

WASHER

- flat

8шт.

19

429-1010

NUT,5/8"-11, G8

4шт.

20

S300723

STUD

- pump

4шт.

21

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

- hex, 5/8 NC x 5 inch, grade 8

4шт.

22

L32320

PLUG

- slotted, 7/16 inch NF

1шт.

23

1978256C1

SEAL

- groved

2шт.

24

194255A1

BACK-UP RING

PLATE - thrust, bronze

2шт.

25

1978257C1

SEALING RING

SEAL - square section

2шт.

26

1978258C1

CENTERING RING

BUSHING - alignment, gear housing

8шт.

27

S300421

RESTRICTOR

REDUCER - special, cover to air vent

1шт.
