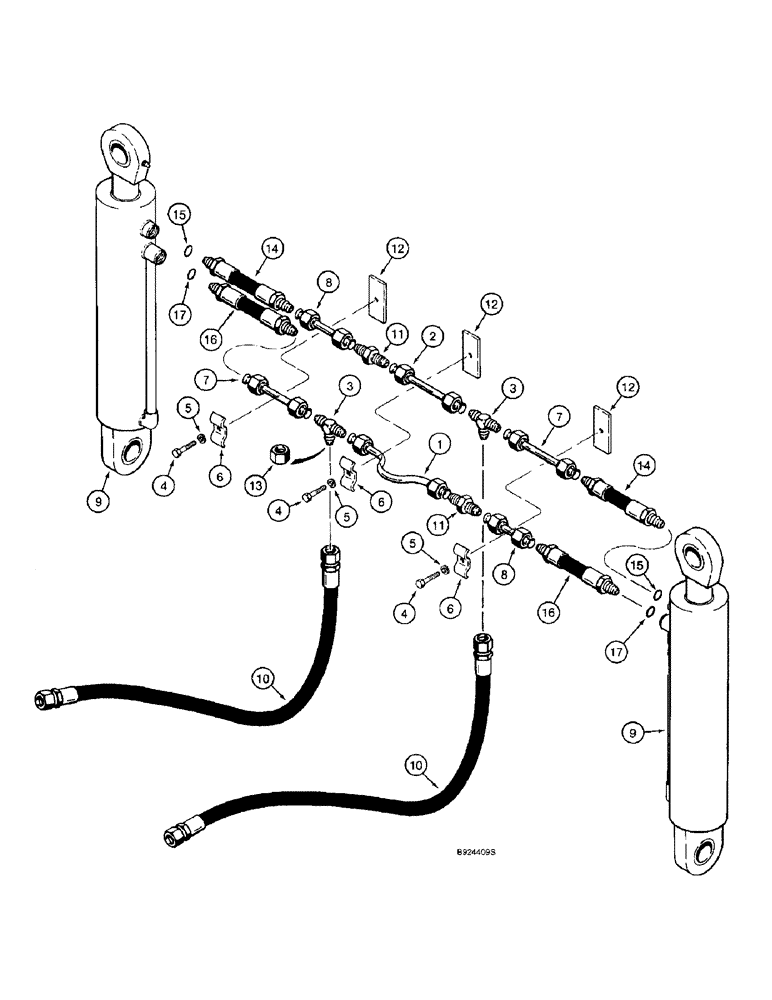

Запчасти Case 821B (8-18) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS

1

S301002

PIPE

TUBE - auxiliary cylinder hydraulics, lower center

1шт.

2

S301003

PIPE

TUBE - auxiliary cylinder hydraulics, upper center

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare branch x flare x flare, to auxiliary cylinders

2шт.

4

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

R15257

CLAMP

- tube support

3шт.

7

S301001

PIPE

TUBE - auxiliary cylinder hydraulics, upper right-hand and lower left-hand

2шт.

8

S301004

PIPE

TUBE - auxiliary cylinder hydraulics, upper left-hand and lower right-hand

2шт.

9

S301000

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 356 mm (14 inch) stroke, parts list Fig. 8-50

2шт.

10

S301054

HYDRAULIC HOSE

HOSE - 1867 mm (73-1/2 inch) long, to tubes at loader arm cross tube

2шт.

11

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

2шт.

12

S300779

SUPPORT

BLOCK - tapped

3шт.

13

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch, if used

2шт.

14

S301052

HOSE ASSY.

HOSE - 438 mm (17-1/4 inch) long, at auxiliary cylinder, rod end, includes: Ref. 15

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

16

S301053

HOSE ASSY.

HOSE - 419 mm (16-1/2 inch) long, at auxiliary cylinder, closed end, includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
