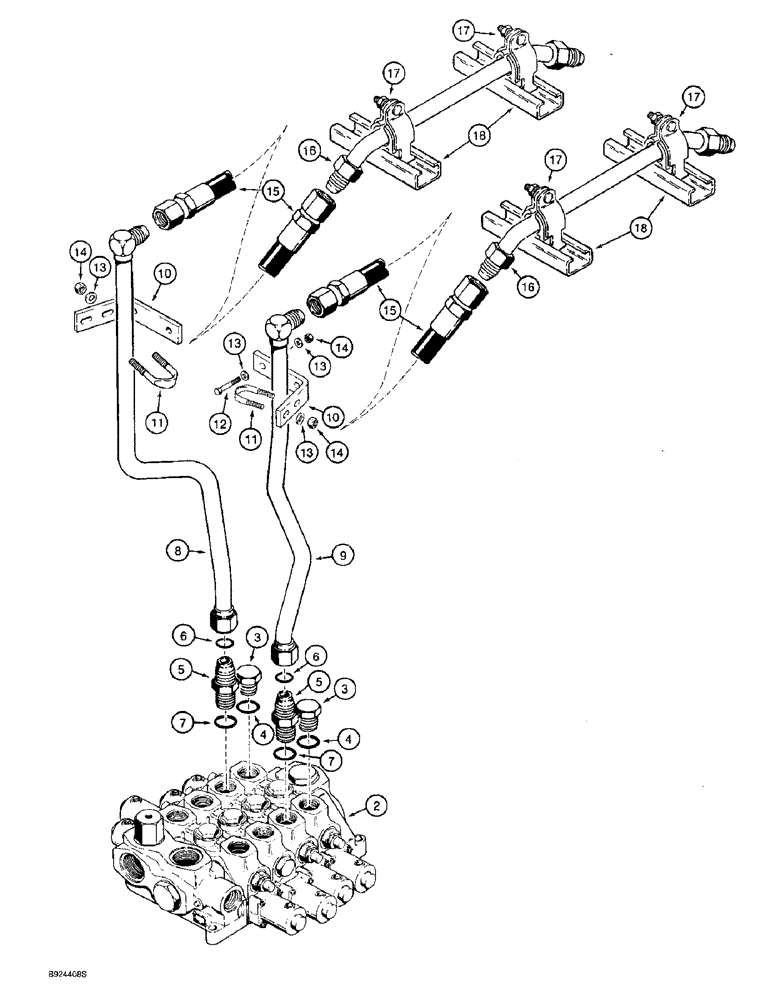

Запчасти Case 821B (8-16) - AUXILIARY HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (08) - HYDRAULICS

1

L126101

VALVE

ASSEMBLY - control, three spool, not shown, parts list Fig. 8-24, if used

1шт.

2

L126102

VALVE

ASSEMBLY - control, four spool, parts list Fig. 8-26, if used

1шт.

3

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss, use to plug ports of fourth valve section on units with four spool valve, includes: Ref. 4 - 7

2шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

L124289

CONNECTOR, ELEC

ADAPTER - straight, special

2шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

7

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Face seal end -024, 90 Duro, 1.114" ID x .070" Thk

1шт.

8

L125734

TUBE,31.75 mm OD

- left-hand, auxiliary section to hose

1шт.

9

L125732

TUBE,31.75 mm OD

- right-hand, auxiliary section to hose

1шт.

10

L129435

SUPPORT

BRACKET - mounting, tube

2шт.

11

L129257

U-BOLT

- tube retaining

2шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

4шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

14

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

8шт.

15

L125746

HOSE

- 1425 mm (56-1/8 inch) long, tube at loader valve to tube on lift arm

2шт.

16

L125736

PIPE,31.75 mm OD x 480, 277 mm L

TUBE - at loader arm, left and right-hand

2шт.

17

S93266

CLAMP

- includes hardware

4шт.

18

S98413

SUPPORT

CHANNEL - tube clamp, 5 inch (127 mm) long, welded on

4шт.
